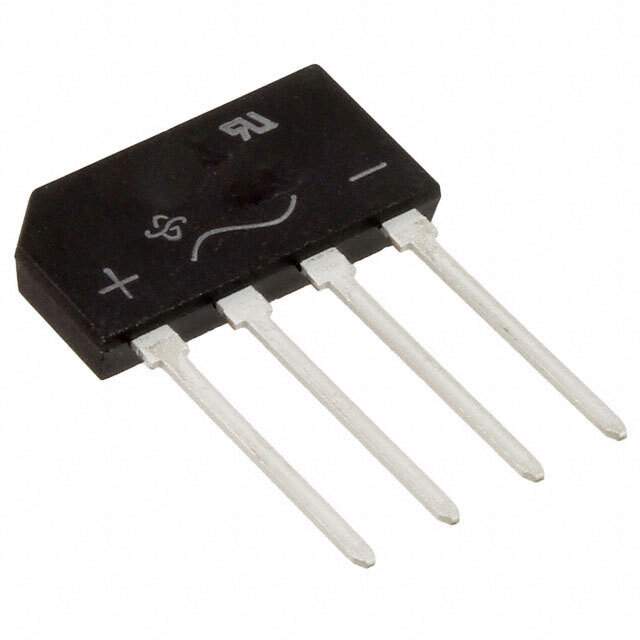

GBL02-E3/51 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 4A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, GBL
Supplier Device Package GBL
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808820-GBL02-E3/51
Ultra Librarian 3D Model Ultra Librarian GBL02-E3/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBL02-E3/51 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Voltage Peak Reverse (Maximum): 200V
  • Current-Average Rectified (Io): 3A
  • Voltage-Forward (Vf) (maximum) @ If: 1.1V @ 4A
  • Package: 4-SIP, GBL
  • Mounting: Through Hole
  • Manufacturer Pack Quantity: 400
  • Supply and Demand Status: Limited
