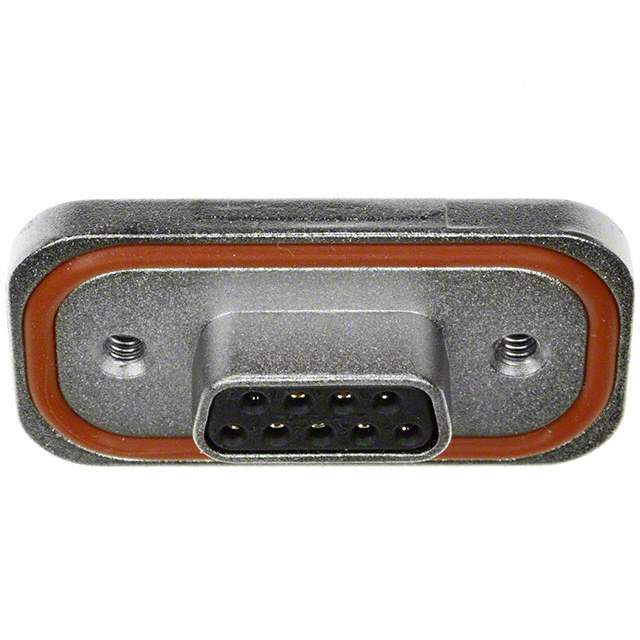

MDBE09SE860 Real Image
Same model may have multiple batches, images only for reference.

MDBE09SE860

Part No MDBE09SE860
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9P PNL MNT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (Commercial Products)
Series MDB
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Zinc, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Base Product Number MDBE09
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names MDB-E09SE-860
Standard Package 48
Win Source Part Number 1182419-MDBE09SE860
Ultra Librarian 3D Model Ultra Librarian MDBE09SE860 CAD Model

Description

The MDBE09SE860 is an obsolete electronic component manufactured by Amphenol ICC (Commercial Products).

  • Type: D-Sub connector
  • Features: Board Lock, Flange
