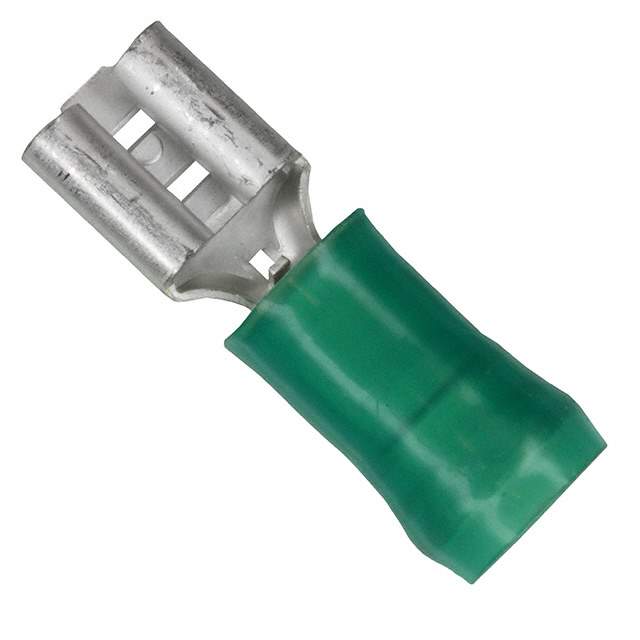

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 1.012" (25.70mm)
Termination Crimp
Wire Gauge 12-14 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Color Green
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.250" (6.35mm)
Base Product Number 42844
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A27975,A27975-ND,A0905CT,A0905TR,42844-3-ND,428443,-42844-3-SI
Standard Package 2,500
Win Source Part Number 1183596-42844-3
Ultra Librarian 3D Model Ultra Librarian 42844-3 CAD Model

Description

The 42844-3 is a female terminal connector manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1183596-42844-3
