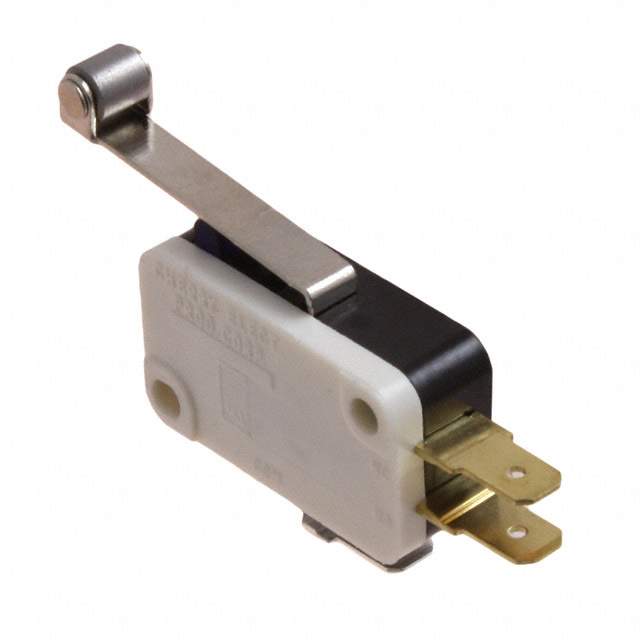

E22-50K Real Image
Same model may have multiple batches, images only for reference.

E22-50K

Part No E22-50K
Manufacturer ZF Electronics
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr ZF Electronics
Series E
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 100mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 35gf
Operating Position 0.806" (20.5mm)
Pretravel 0.125" (3.2mm)
Differential Travel 0.030" (0.76mm)
Overtravel 0.085" (2.16mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 6,000 Cycles
Standard Package 960 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 915322-E22-50K
Ultra Librarian 3D Model Ultra Librarian E22-50K CAD Model

Description

The E Limit Switch is a versatile component designed for various applications from ZF Electronics.

  • Win Source Part Number: 915322-E22-50K
  • Product Status: Obsolete
  • Category: Switches - Limit Switches
  • Termination Style: Quick Connect
  • Termination Size: 0.187" (4.7mm)
  • Voltage Rating AC: 125V AC
  • Voltage Rating DC: 125V DC
  • Circuit: Single-Pole Double-Throw (SPDT)
  • Switch Function: On-Mom
  • Actuator Type: Lever and Roller
  • Electrical Life: 6,000 cycles
  • Operating Force: 35gf
  • Pretravel: 0.125" (3.2mm)
  • Differential Travel: 0.030" (0.76mm)
  • Overtravel: 0.085" (2.16mm)
  • Operating Position: 0.806" (20.5mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS code: 8536.50.7000
