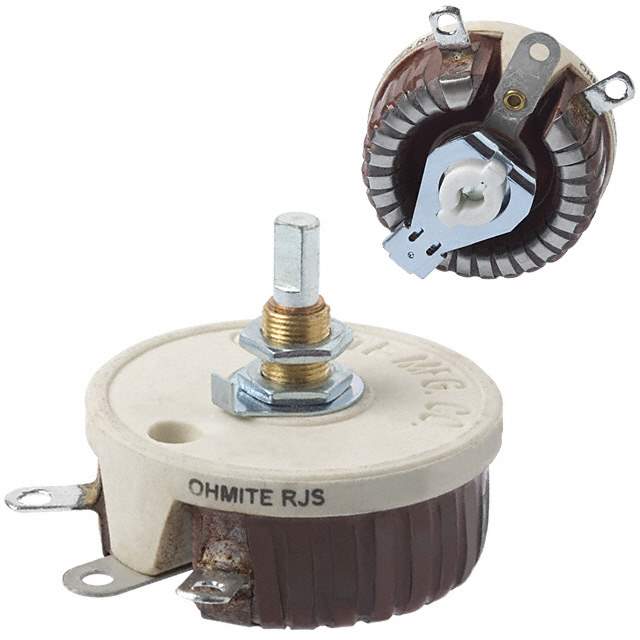

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr Ohmite
Series J
Package Bulk
Resistance (Ohms) 500
Tolerance ±10%
Power (Watts) 50W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Rotation 300°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Flatted
Actuator Length 0.875" (22.23mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 2.310" Dia (58.67mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.39.0080
Other Names Q3235148
Standard Package 1
Win Source Part Number 975221-RJS500E
Ultra Librarian 3D Model Ultra Librarian RJS500E CAD Model

Description

The Ohmite RJS500E is a high-quality electronic component that is part of the J series of potentiometers.

  • Resistance: 500 ohms
  • Power Rating: 50 watts
  • Tolerance: ±10 percent
  • Taper: Linear
  • Actuator: Flatted
  • Actuator Length: 0.875 inches
  • Bushing Thread: 3/8-32
  • Rotation: 300 degrees
  • Body Size: Round, 2.310 inches diameter
  • Type: Wirewound
  • Mount: Panel Mount
