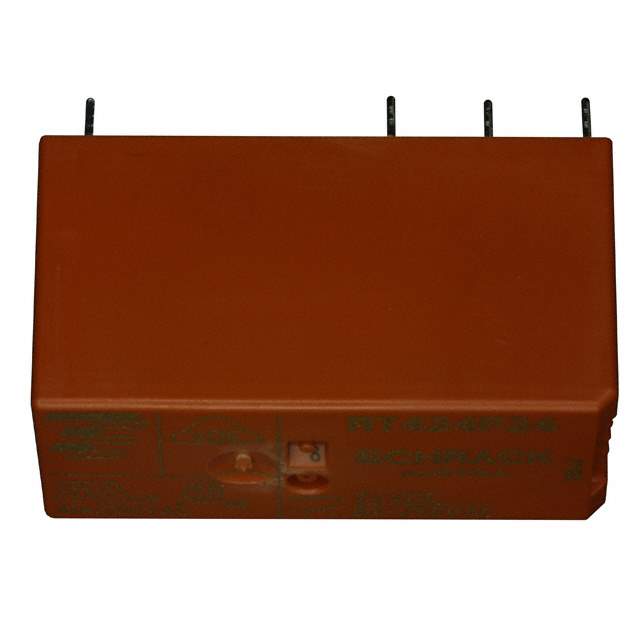

4-1393243-6 Real Image
Same model may have multiple batches, images only for reference.

4-1393243-6

Part No 4-1393243-6
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 12VDC 360Ohm 15A DPDT (29x12.7x15.7)mm THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 33.33 mA
Coil Power 400 mW
Coil Resistance 360 Ω
Coil Voltage (DC) 12 V
Contact Current Rating 15 A
Contact Material Silver
Current Rating 8 A
Depth 12.7 mm
Dropout Voltage 8.4 V
ELV Compliant
Height 15.7 mm
Length 29 mm
Max Current Rating 15 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -10 °C
Mount Through Hole
Number of Pins 9
Operate Time 10 ms
Packaging Carton
Radiation Hardening No
Ratings IP54
RoHS Compliant
Switching Capacity 2 kW
Switching Current 8 A
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 400 V
Width 12.7 mm
Win Source Part Number 1038577-4-1393243-6
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1393243-6 CAD Model

Description

The 1038577-4-1393243-6 is a signal relay from TE Connectivity. It has a current rating of 8A and a contact current rating of 15A.

  • Current Rating: 8A
  • Contact Current Rating: 15A
  • Coil Resistance: 360Ω
  • Coil Current: 33.33mA
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -10°C
  • Throw Configuration: DPDT
  • Switching Current: 8A
  • Supply Status: Shortage
