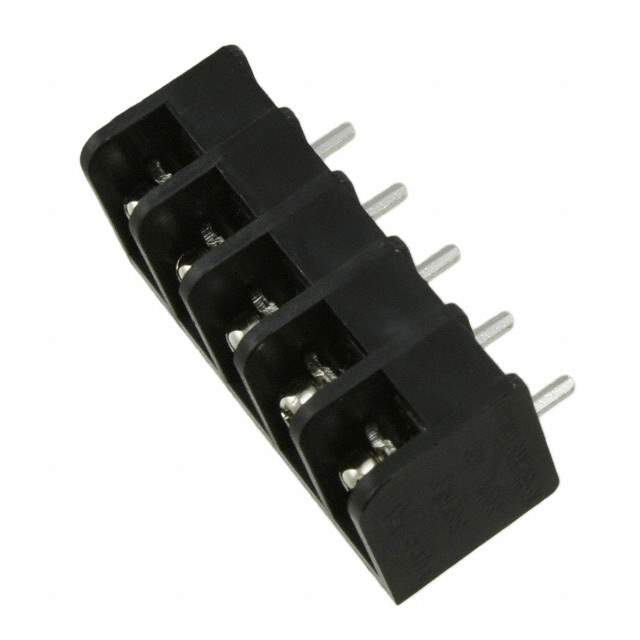

3PCV-05-006 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Barrier Blocks
Mfr TE Connectivity AMP Connectors
Series #3, Buchanan
Package Bulk
Terminal Block Type Barrier Block
Number of Circuits 5
Number of Wire Entries 5
Pitch 0.250" (6.35mm)
Number of Rows 1
Current Rating (Amps) 10A
Voltage Rating 300V
Wire Gauge 18-22 AWG
Top Termination Screws with Captive Plate
Bottom Termination PC Pin
Barrier Type 3 Wall (Tri)
Color Black
Terminal Screw Material Steel
Terminal Screw Finish Zinc
Mounting Type Through Hole
Temperature Range - Operating 120°C
Material - Insulation Thermoplastic
Material Flammability Rating UL94 V-0
Base Product Number 3PCV
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 414376465,4-1437646-5-ND,4-1437646-5
Standard Package 300
Win Source Part Number 1103571-3PCV-05-006
Ultra Librarian 3D Model Ultra Librarian 3PCV-05-006 CAD Model

Description

The Buchanan series #3 barrier block terminal is a high-quality connector used in various applications.

  • Pitch: 0.250" (6.35mm)
  • Voltage Rating: 300V
  • Suitable for use with: 18-22 AWG wires
  • Material: thermoplastic material
  • Flammability Rating: UL94 V-0
  • Circuits: five
  • Wire Entries: five
  • Mounting Type: through-hole
  • Top Termination: screws with captive plate
  • Bottom Termination: PC pin
  • Barrier Type: 3 wall (tri)
  • Terminal Screw Material: steel with a zinc finish
  • Packaging: bulk packaging
  • Standard Package: 300
  • Temperature Range: 120°C
