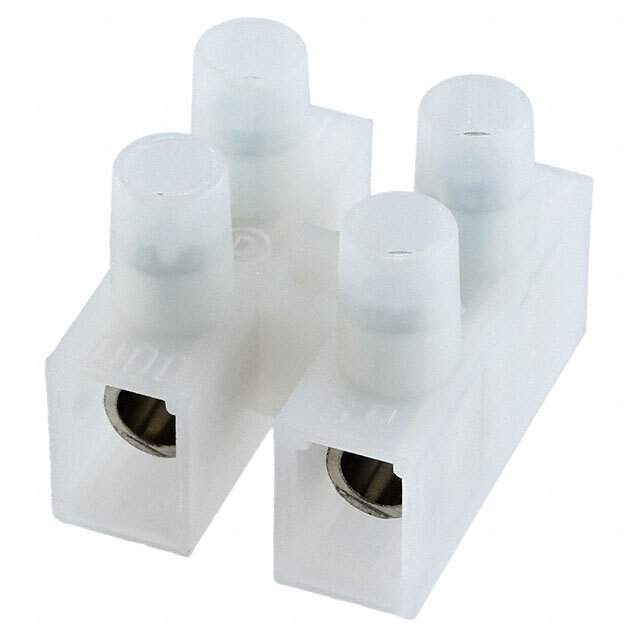

1776302-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Barrier Blocks
Mfr TE Connectivity AMP Connectors
Series TSB1000, Buchanan
Package Bulk
Terminal Block Type Eurostyle Terminal Strip
Number of Circuits 2
Number of Wire Entries 4
Pitch 0.472" (12.00mm)
Number of Rows 2
Current Rating (Amps) 40A
Voltage Rating 250V
Wire Gauge 10-22 AWG
Top Termination Screws
Bottom Termination Closed
Barrier Type Enclosed
Color Natural
Terminal Screw Material Steel
Terminal Screw Finish Zinc, Non-Hexavalent Chromate
Mounting Type Chassis, Panel
Temperature Range - Operating 100°C
Material - Insulation Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-2
Base Product Number 1776302
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1316061-1776302-2
Ultra Librarian 3D Model Ultra Librarian 1776302-2 CAD Model

Description

The TSB1000, Buchanan terminal block is a Eurostyle terminal strip with a pitch of 0.472" (12.00mm) and a voltage rating of 250V.

  • Pitch: 0.472" (12.00mm)
  • Voltage Rating: 250V
  • Number of Rows: 2
  • Number of Wire Entries: 4
  • Wire Gauge: 10-22 AWG
  • Terminal Screw Material: Steel
  • Terminal Screw Finish: Zinc and Non-Hexavalent Chromate
  • Housing Material: Polyamide (PA66) Nylon 6/6
  • Material Flammability Rating: UL94 V-2
  • Mounting Type: Chassis and Panel Mounting
  • Operating Temperature: 100°C
