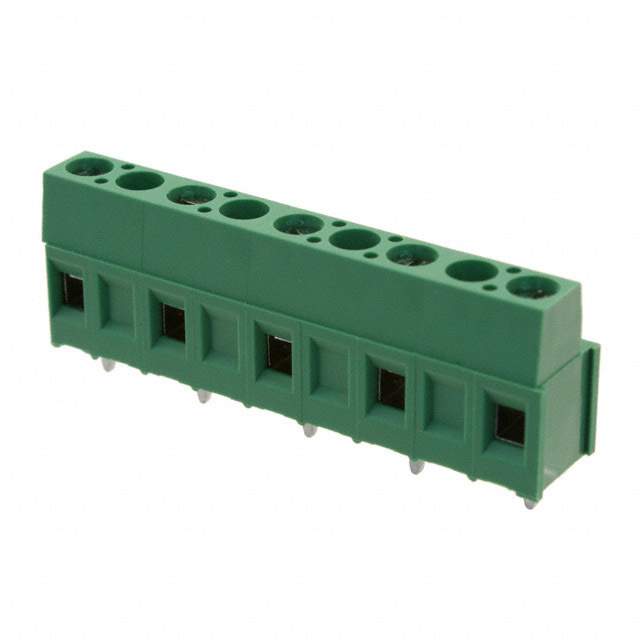

282843-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Number of Levels 1
Positions Per Level 5
Pitch 0.400" (10.16mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 600 V
Wire Gauge 12-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 282843
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A98087,2828435
Standard Package 100
Win Source Part Number 1332224-282843-5
Ultra Librarian 3D Model Ultra Librarian 282843-5 CAD Model

Description

The 1332224-282843-5 is a wire-to-board terminal block manufactured by TE Connectivity AMP Connectors.

  • Positions per Level: 5
  • Levels: 1
  • Pitch: 0.400" (10.16mm)
  • Wire Gauges: 12-30 AWG
  • Voltage Rating: 600V
  • Current Rating: 17.5A
  • Color: Green
  • Features: Interlocking (side)
  • Housing Material: Polyamide (PA66), nylon 6/6
  • Contact Material-Plating: Brass-tin plated
  • Clamp Material-Plating: Brass-nickel plated
  • Screw Material-Plating: Brass-nickel plated
  • Torque Screw: 0.79 Nm (7.0 Lb-In)
  • Screw Thread: M3
  • RoHS Compliant: Yes
  • Standard Package: 100
