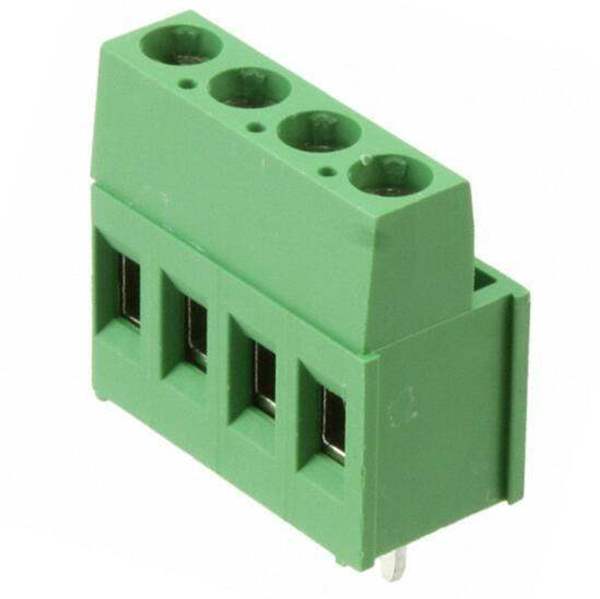

282857-4TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Buchanan
Package Bulk
Product Status Active
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Features Interlocking (Side)
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Win Source Part Number WS1207425-282857-4
Ultra Librarian 3D Model Ultra Librarian 282857-4 CAD Model

Description

4 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
