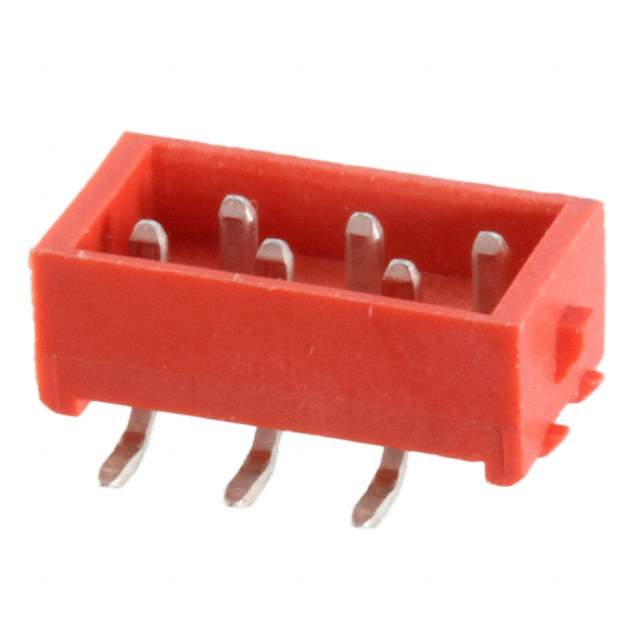

338728-6 Real Image
Same model may have multiple batches, images only for reference.

338728-6

Part No 338728-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 6POS DL VERT SMD
Datasheet
338728-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Micro-MaTch
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Mounting SMD
Termination Solder
Fastening Type Latch Lock
Insulation Height 0.181" (4.60mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1μin (3.00μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Red
Current Rating 1.5A
Voltage Rating 230V
Applications General
Win Source Part Number 763331-338728-6
Family Name 338728
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America, Netherlands, Germany
Halogen Free Not Compliant
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 338728-6 CAD Model

Description

The TE Connectivity AMP Connectors 763331-338728-6 is a male pin header connector with 6 positions loaded.

  • Manufacturer: TE Connectivity AMP Connectors
  • Positions: 6
  • Style: Board-to-board or cable
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Material: Brass
  • Voltage Rating: 230V
  • Current Rating: 1.5A
  • Applications: General
  • Mounting Type: SMD
  • Shrouding: 4 walls
  • Insulation Color: Red
