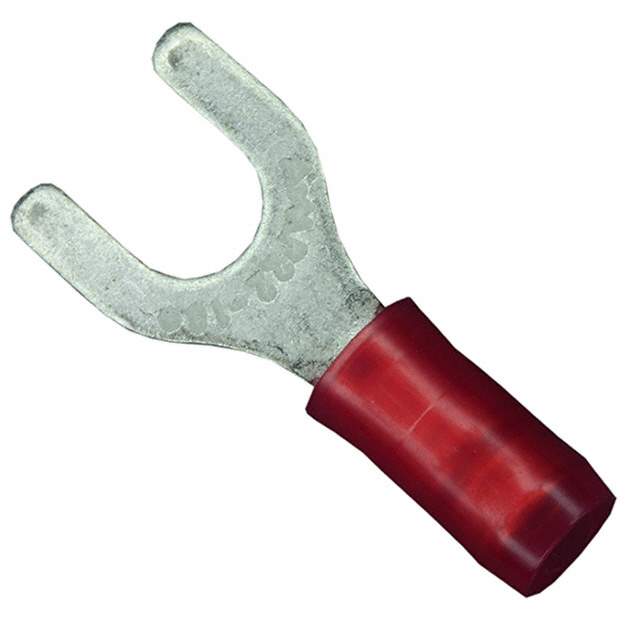

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Red
Contact Material Copper
Contact Plating Tin
Depth 9.53 mm
Gender Female
Government Qualified No
Heavy Duty No
Insulated Wire Support Yes
Insulation Insulated
Insulation Diameter 3.556 mm
Insulation Material Nylon
Lead Free Lead Free
Length 23.06 mm
Material Copper
Material Thickness 790 µm
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Free Hanging
Orientation Straight
Packaging Bulk
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Stud Diameter 4.82 mm
Stud Size M5
Terminal Material Copper
Termination Crimp
Thread Size M4
Tongue Thickness 790 µm
Voltage Rating (AC) 300 V
Voltage Rating (DC) 300 V
Width 9.53 mm
Wire/Cable Diameter 3.18 mm
Wire/Cable Gauge 16 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1166309-32051
Categories Terminals
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 32051 CAD Model

Description

This female terminal is manufactured by TE Connectivity.

  • Length: 23.06 mm
  • Width: 9.53 mm
  • Orientation: Straight
  • Termination Type: Crimp
  • Contact Material: Copper
  • Contact Plating: Tin
  • Insulation Material: Nylon
  • Body Material: Copper
  • Body Plating: Tin
  • Insulation Diameter: 3.556 mm
  • Material Thickness: 790 μm
  • Thread Size: M4
  • Wire/Cable Gauge: 16 AWG to 22 AWG
  • Voltage Rating (AC/DC): 300 V
  • Operating Temperature Range: -55 °C to 105 °C
  • RoHS Compliant: Yes
  • Packaging: Bulk
