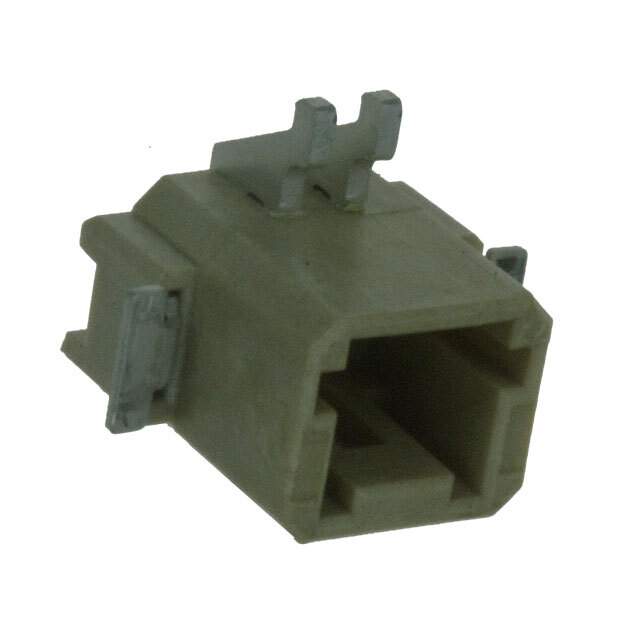

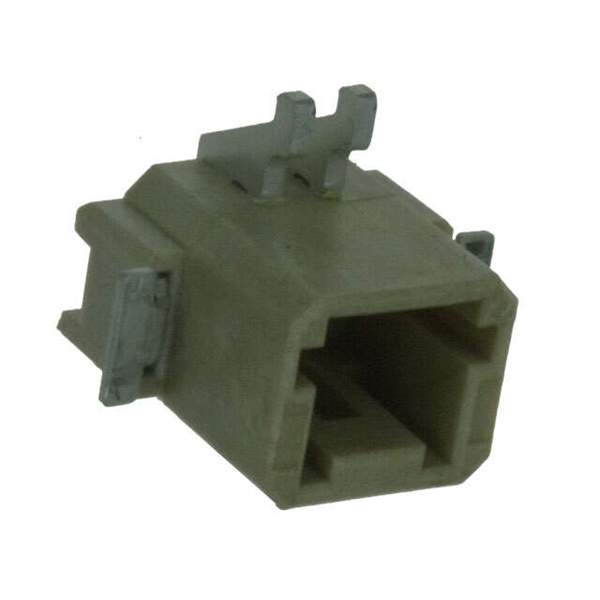

2106091-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini CT
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Through Board
Termination Solder
Fastening Type Detent Lock
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 2106091
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2106091-1-LSI,A99870CT,-2106091-1-SI,A99870DKR,-2106091-1-CSI,21060911,A99870TR
Standard Package 450
Win Source Part Number 1001723-2106091-1
Ultra Librarian 3D Model Ultra Librarian 2106091-1 CAD Model

Description

The TE Connectivity AMP Connectors 1001723-2106091-1 is a header connector designed for board-to-cable/wire applications.

  • Positions: 2
  • Features: Solder Retention
  • Voltage Rating: 50VAC
  • Temperature Range: -30°C to 105°C
  • Packaging: Tape and Reel
  • Standard Package: 450
  • Design: Shrouded 4-Wall
