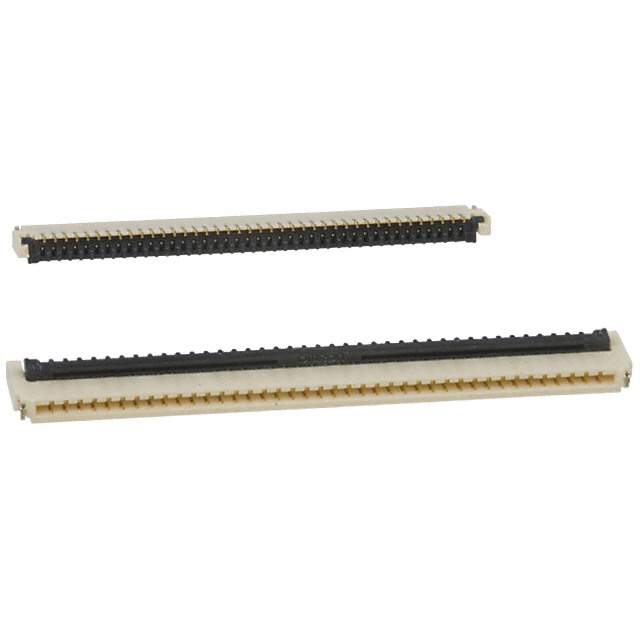

XF2U-3215-3A

Name: XF2U-3215-3A
Brand: Omron
SKU: 1101804
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XF2U-3215-3A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 32POS 0.50MM R/A / 32 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	XF2U-3215-3A Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Omron Electronics Inc-EMC Div
Series	XF2U
Package	Tape & Reel (TR),Cut Tape (CT)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	32
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	XF2U-3215-3ACT,XF2U32153A,-XF2U-3215,XF2U-3215-3A-ND,XF2U-3215-3ATR,2266-XF2U-3215-3A
Standard Package	3,000
Win Source Part Number	1101804-XF2U-3215-3A
Ultra Librarian 3D Model	Ultra Librarian XF2U-3215-3A CAD Model

Description

The Omron XF2U-3215-3A is a 32-position FFC, FPC (Flat Flexible) connector used in various electronic devices.

Pitch: 0.020" (0.50mm)
Height Above Board: 0.035" (0.88mm)
Feature: Rotary lock and backlock
Material: Liquid crystal polymer (LCP), halogen-free
Status: Obsolete
Win Source Part Number: 1101804
