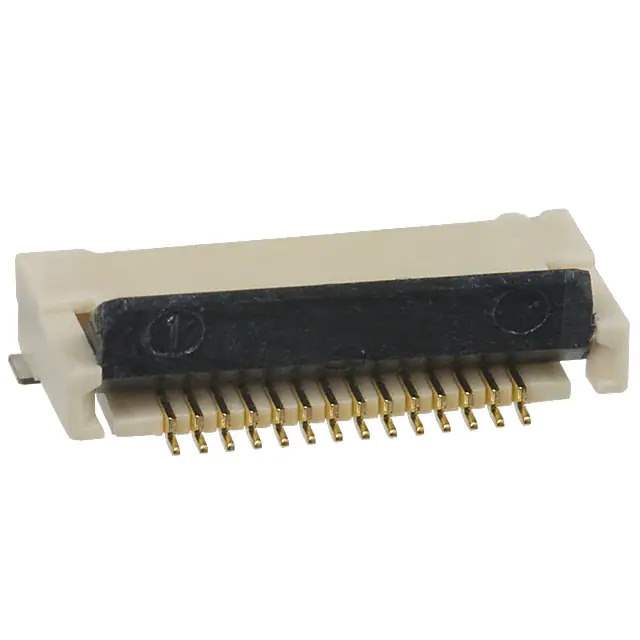

XF2M-1015-1A-R100 Real Image
Same model may have multiple batches, images only for reference.

XF2M-1015-1A-R100

Part No XF2M-1015-1A-R100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 10POS 0.5MM R/A / 10 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Omron
Series XF2M
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 10
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.083" (2.10mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF2M
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 939804-XF2M-1015-1A-R100
Ultra Librarian 3D Model Ultra Librarian XF2M-1015-1A-R100 CAD Model

Description

The Omron XF2M-1015-1A-R100 is a FFC, FPC (Flat Flexible) connector assembly designed for various connector applications.

  • Positions: 10-position
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold Plating
  • Material: Copper Alloy
  • Voltage Rating: 50V
  • Series: XF2M
  • Mounting: Surface Mount, Right-Angle
  • Status: Active
  • Package: Tape & Reel
