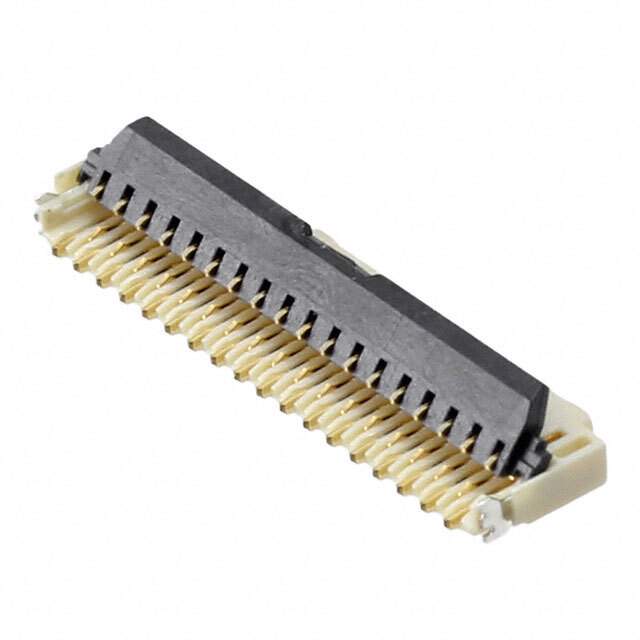

XF3H-3555-31A

Part No XF3H-3555-31A
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description Rotary Frontlock Connector (0.3-mm Pitch, Lower Contact) | CONN FPC BOTTOM 35POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel
Status Obsolete
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 35
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Rotary Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Dielectric Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 5.90μin (0.150μm)
Housing Color Natural
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1282101-XF3H-3555-31A
Manufacturer Homepage www.omron.com/index3.html
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XF3H-3555-31A CAD Model

Description

The Omron Electronics Inc-EMC Div XF3H-3555-31A is a high-quality, SMT right angle connector that features a rotary lock mechanism for added security.

  • Pitch: 0.012" (0.30mm)
  • Positions: 35
  • Cable Thickness: 0.20mm
  • Voltage Rating: 50V
  • Contact Material: copper alloy with a gold finish thickness of 5.90μin (0.150μm)
  • Height Above Board: 0.035" (0.88mm)
  • Actuator Material: liquid crystal polymer (LCP), halogen-free
  • Housing Color: natural
  • Flammability Rating: UL94 V-0
  • Popularity: popular and widely used
