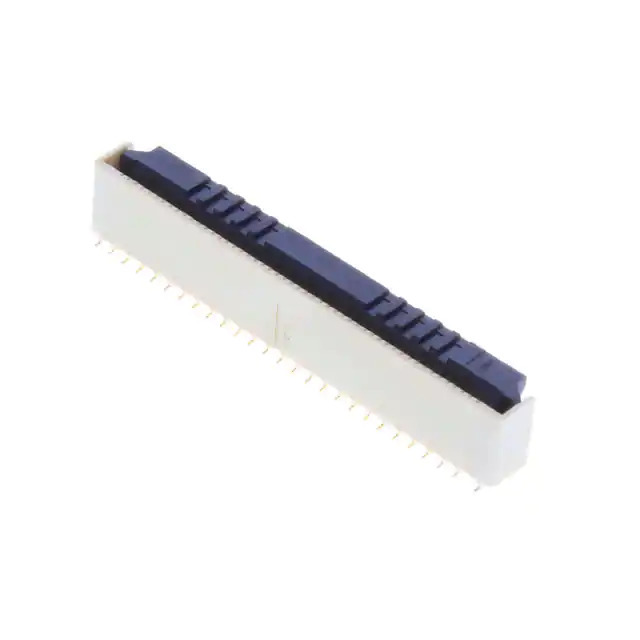

TF38-50S-0.5SV(830) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

TF38-50S-0.5SV(830)

Part No TF38-50S-0.5SV(830)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 50POS 0.5MM SMD / 50 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
TF38-50S-0.5SV(830) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series TF38
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.205" (5.20mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number TF38
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1362729-TF38-50S-0.5SV(830)
Ultra Librarian 3D Model Ultra Librarian TF38-50S-0.5SV(830) CAD Model

Description

The Hirose Electric Co Ltd TF38 is a flat flexible connector assembly designed for FFC and FPC applications. It features zero insertion force (ZIF) technology, allowing easy and secure connections.

  • Connector Type: FFC/FPC
  • Technology: ZIF (Zero Insertion Force)
  • Number of Positions: 50
  • Termination: Solder
  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.205" (5.20mm)
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 50V
  • Status: Active
