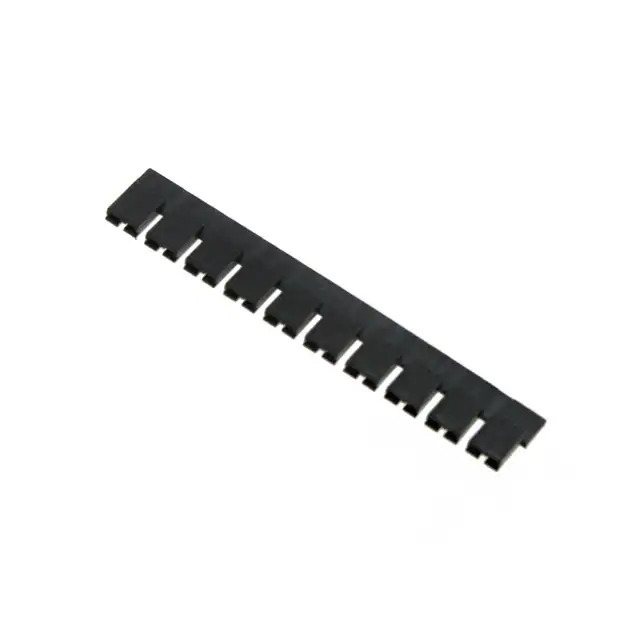

2-382811-0 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr TE Connectivity AMP Connectors
Series AMPMODU
Package Strip
Product Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.250" (6.35mm)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Voltage Rating -
Current Rating (Amps) -
Base Product Number 382811
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363459-2-382811-0
Ultra Librarian 3D Model Ultra Librarian 2-382811-0 CAD Model

Description

The TE Connectivity AMP Connectors 1363459-2-382811-0 is a shunt or jumper connector from the AMPMODU series.

  • Connector Type: Shunt / Jumper
  • Top Style: Open Top
  • Gender: Female Socket
  • Number of Positions: 2
  • Configuration: 1x2
  • Pitch: 0.100" (2.54mm)
  • Height: 0.250" (6.35mm)
  • Material: Polyester and Glass-Filled
  • Flammability Rating: UL94 V-0
  • Color: Black
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Current Rating: Not Specified
  • Voltage Rating: Not Specified
  • Packaging: Strip
