Same model may have multiple batches, images only for reference.

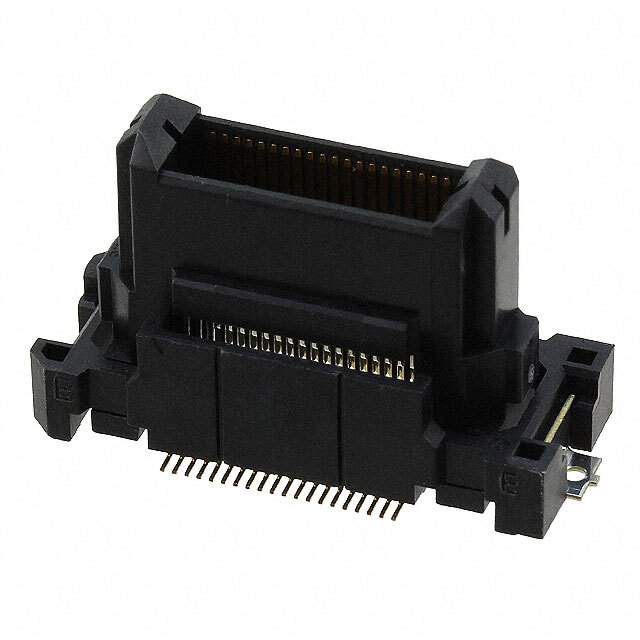

FX20-40P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX20-40P-0.5SV15

Part No FX20-40P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 40POS SMD GOLD / 40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX20-40P-0.5SV15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX20
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 25mm
Height Above Board 0.520" (13.20mm)
Base Product Number FX20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H122384,-FX20-40P-0.5SV15,*FX20-40P-0.5SV15,570-1001-0-00
Standard Package 80
Win Source Part Number 1024130-FX20-40P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX20-40P-0.5SV15 CAD Model

Description

The FunctionMax™ FX20 series header is a rectangular connector array with outer shroud contacts. Bold the product name, FX20 and series name, FunctionMax™ FX20 series header and manufacturer, Hirose Electric Co Ltd.

  • Positions: 40
  • Pitch: 0.020” (0.50mm)
  • Features: Solder retention
  • Contact Finish: Gold, 4.00μin (0.100μm)
  • Mounting Type: SMD (SMT)
  • Height Above Board: 0.520” (13.20mm)
  • Mated Stacking Heights: 15mm, 25mm
  • Packaging: Tray
  • Standard Package: 80
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
