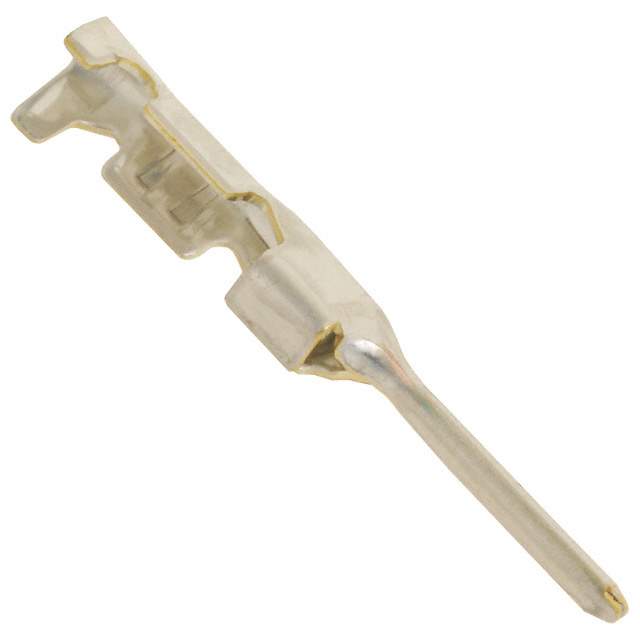

SWPT-001T-025 Real Image
Same model may have multiple batches, images only for reference.

SWPT-001T-025

Part No SWPT-001T-025
Manufacturer JST Sales America Inc.
Catalog Rectangular - Board to Board Connectors
Description JWPF Series 2 mm Wire to Wire 26-22 AWG Waterproof Disconnectable Tab Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Plating Tin
Connector Type Crimp, Power, Rectangular
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Current Rating 3 A
Gender Male
Insulation Resistance 800 MΩ
Lead Free Yes
Lead Pitch 2 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Number of Contacts 1
Number of Poles 1
Number of Rows 1
Packaging Cut Tape
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating (AC) 100 V
Voltage Rating (DC) 100 V
Wire/Cable Gauge 26 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 22 AWG
Working Voltage 100 V
Win Source Part Number 968918-SWPT-001T-025
Categories Rectangular - Board to Board Connectors
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SWPT-001T-025 CAD Model

Description

The SWPT-001T-025 is a crimp power rectangular connector manufactured by JST Sales America Inc. Bold the product name (e.g., BAV99S,135 → SWPT-001T-025) and manufacturer (e.g., Nexperia USA Inc. → JST Sales America Inc.).

  • Type: Crimp Power Rectangular Connector
  • Row Count: 1
  • Gender: Male
  • Number of Contacts: 1
  • Current Rating: 3A
  • Working Voltage: 100V
  • Wire/Cable Gauge: 26 AWG
  • Wire Gauge Range: 22-26 AWG
  • Contact Plating: Tin
  • Body Plating: Tin
  • Contact Material: Brass
  • Maximum Operating Temperature: 85°C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
