Same model may have multiple batches, images only for reference.

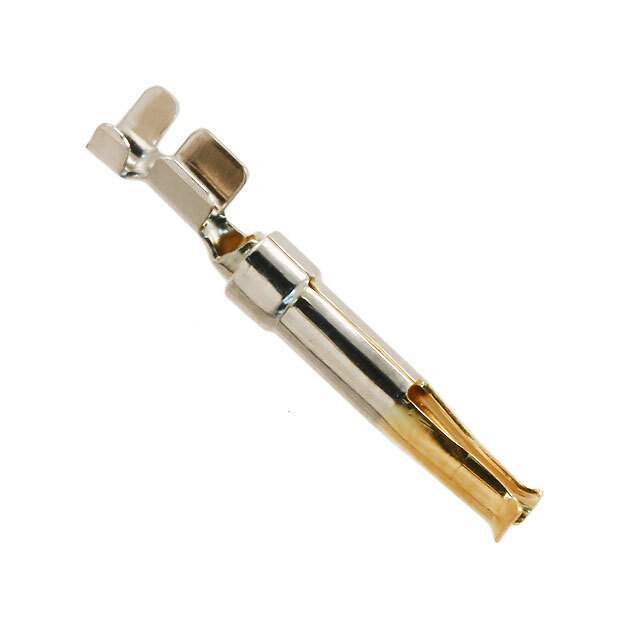

09670008278 HARTING
Same model may have multiple batches, images only for reference.

09670008278

Part No 09670008278
Manufacturer HARTING
Catalog Contacts - Multi Purpose
Description CONN SOCKET 20-24AWG GOLD CRIMP
Datasheet
09670008278 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects> Contacts> Multi Purpose
Manufacturer HARTING
Packaging  Bulk
Part Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Material Brass
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 09670008278 CAD Model

Description

Socket Contact Gold Crimp 20-24 AWG Stamped
