Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Series Z-Rec
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 9A
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 5A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 150μA @ 1200V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247-3
Win Source Part Number 771019-C4D10120D
Popularity Medium
Supply and Demand Status Limited
Family Name C4D10120D
Introduction Date September 02, 2015
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian C4D10120D CAD Model

Description

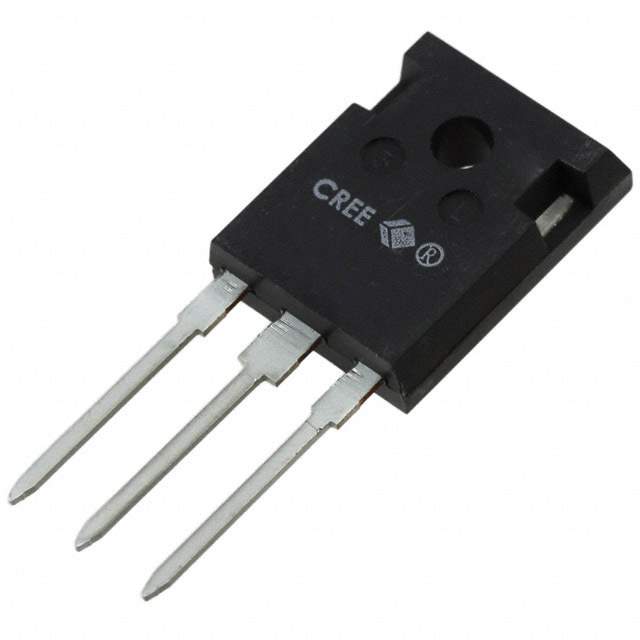

The Cree/Wolfspeed 771019-C4D10120D is a silicon carbide Schottky diode manufactured by Cree/Wolfspeed.

  • Voltage Rating: 1200V
  • Average Rectified Current: 9A (per diode)
  • Reverse Recovery Time: 0ns
  • Current-Reverse Leakage: 150μA @ 1200V
  • Series: Z-Rec
  • Mounting Type: Through-hole
  • Package: TO-247-3
  • Diode Configuration: 1 pair common cathode
  • Voltage-Forward (Vf) (Maximum) @ If: 1.8V @ 5A
  • Also Known As: IDW10G120C5B, APT10SCD120BCT, IDW10G120C5BFKSA1, SCS230KE2AHRC
  • Introduction Date: September 02, 2015
  • EOL Date: 2026
  • ECCN: EAR99
  • Country of Origin: United States of America
