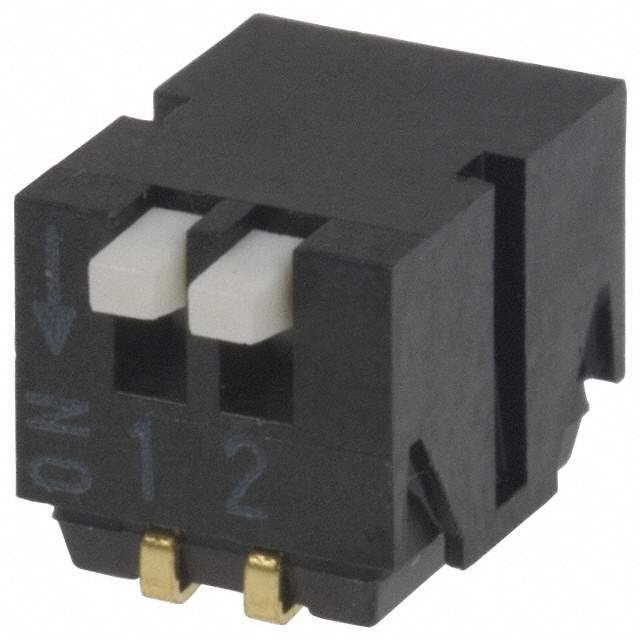

CHP-021TA Real Image
Same model may have multiple batches, images only for reference.

CHP-021TA

Part No CHP-021TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 100MA 6V
Datasheet
CHP-021TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.181" (4.60mm)
Mounting Surface Mount, Right Angle
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.181" (4.60mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 050294-CHP-021TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHP-021TA CAD Model

Description

Product Overview

The CHP-021TA is a versatile component designed for high-performance environments. Its robust architecture makes it ideal for advanced technological projects.

Features and Benefits

  • High tolerance to voltage fluctuations
  • Quick response time for enhanced performance
  • Durable design for long-term applications

Applications

  • Consumer electronics
  • Data processing units
  • Robotics systems

Additional details highlight its innovative design that ensures seamless integration into existing systems with minimal modifications.
