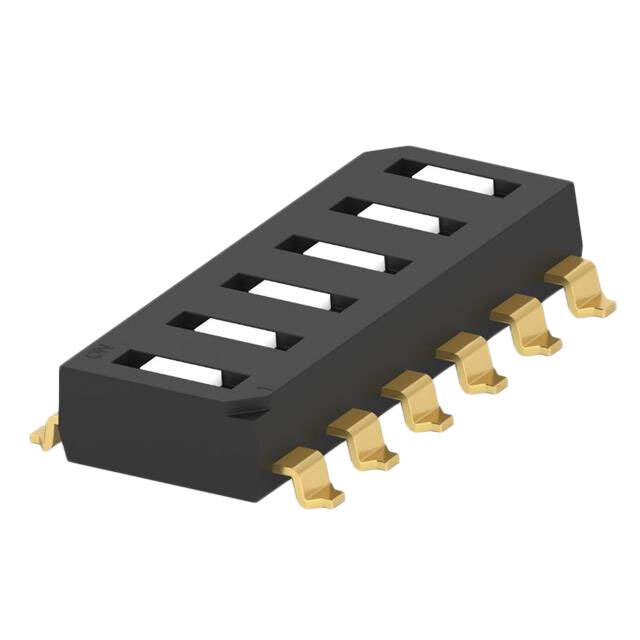

1-1825006-1 Real Image
Same model may have multiple batches, images only for reference.

1-1825006-1

Part No 1-1825006-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 6 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series GDS
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.114" (2.90mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.594" (15.09mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825006
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names GDS06S04,450-1341,2266-1-1825006-1
Standard Package 30
Win Source Part Number 971769-1-1825006-1
Ultra Librarian 3D Model Ultra Librarian 1-1825006-1 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches GDS series DIP switch is a versatile switch designed for use in various electronic circuits.

  • Positions: 6
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: Gull-Wing
  • Contact Finish: Gold
  • Package: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.114" (2.90mm)
  • Circuit: SPST
  • Actuator Type: Slide
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush or Recessed
  • Washable: Yes
  • Operating Temperature: -30°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
  • Current Rating: 25mA
