Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 380mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 18ns
Current - Reverse Leakage @ Vr 1.2mA @ 30V
Capacitance @ Vr, F 48pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMINI2-F4-B-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032654-DB2130200L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2130200L CAD Model

Description

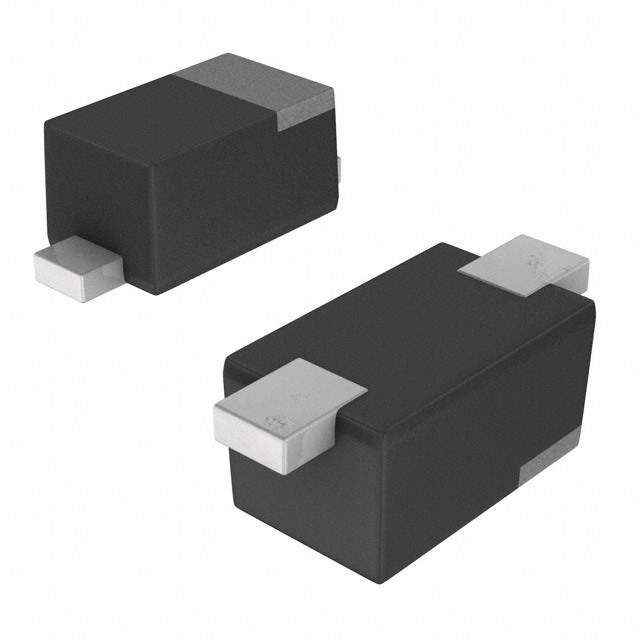

The Panasonic Electronic Components Schottky Diode is a high-quality electronic component designed to offer superior performance.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 1A
  • Voltage Forward @ Max Current: 380mV
  • Reverse Recovery Time: 18ns
  • Capacitance @ Vr, F: 48pF @ 10V, 1MHz
  • Operating Temperature: 125°C (Max)
  • Case/Package: SMINI2-F4-B-B
  • Recovery Speed: 200mA (Io)
  • Popularity: A popular choice for many different applications
