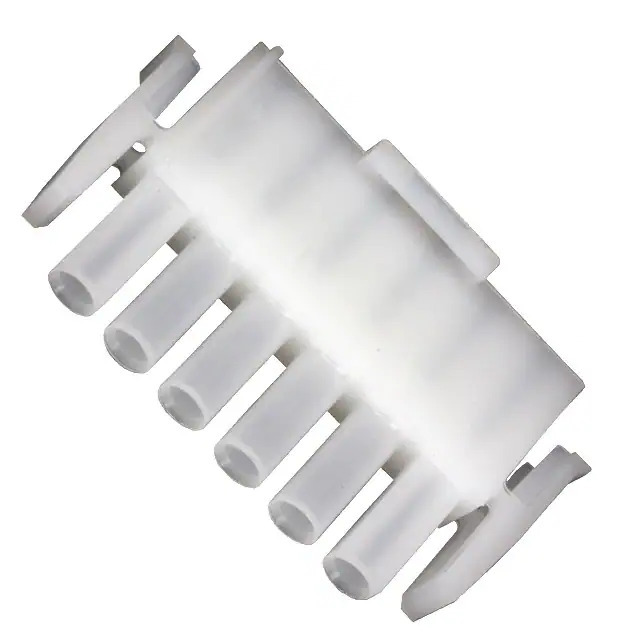

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male or Female
Number of Positions 6
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 640585
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365672-640585-1
Ultra Librarian 3D Model Ultra Librarian 640585-1 CAD Model

Description

The TE Connectivity AMP Connectors rectangular connector housings are an active product with a base product number of 640585.

  • Category: Connectors and Interconnects
  • Temperature Range: -55°C to 105°C
  • MSL Level: 1
  • Moisture Sensitivity: Unlimited
  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Universal MATE-N-LOK
  • Packaging: Bulk
  • Color: Natural
  • Connector Type: Plug
  • Contact Type: Male or Female
