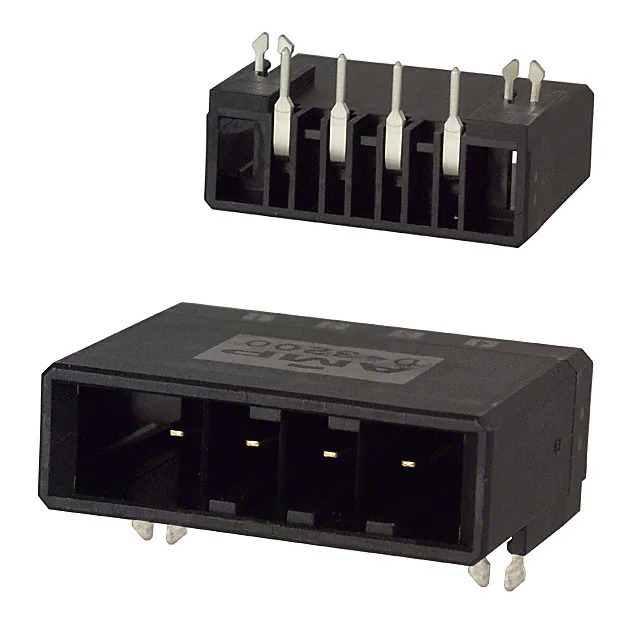

Same model may have multiple batches, images only for reference.
1-179277-2 TE Connectivity
Same model may have multiple batches, images only for reference.

1-179277-2

Part No 1-179277-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 5.08MM / Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3200
Package Tube
Product Status Active
Connector Type Header
Contact Type Tab
Pitch - Mating 0.200" (5.08mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating -
Contact Length - Post 0.150" (3.81mm)
Overall Contact Length -
Insulation Height 0.368" (9.35mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating 600V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose, Industrial
Base Product Number 179277
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362631-1-179277-2
Ultra Librarian 3D Model Ultra Librarian 1-179277-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3200 series is a board lock header connector.

  • Current Rating: - Amps
  • Connection Type: Board-to-Board or Cable
  • Connector Type: Header
  • Contact Type: Tab
  • Pitch: 0.200" (5.08mm)
  • Positions: 4
  • Rows: 1
  • Shroud: Yes, 4 Walls
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Finish (Mating): Gold, 15.0µin (0.38µm)
  • Contact Finish (Post): Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
  • Voltage Rating: 600V
  • Flammability Rating: UL94 V-0
  • Application: General Purpose, Industrial
