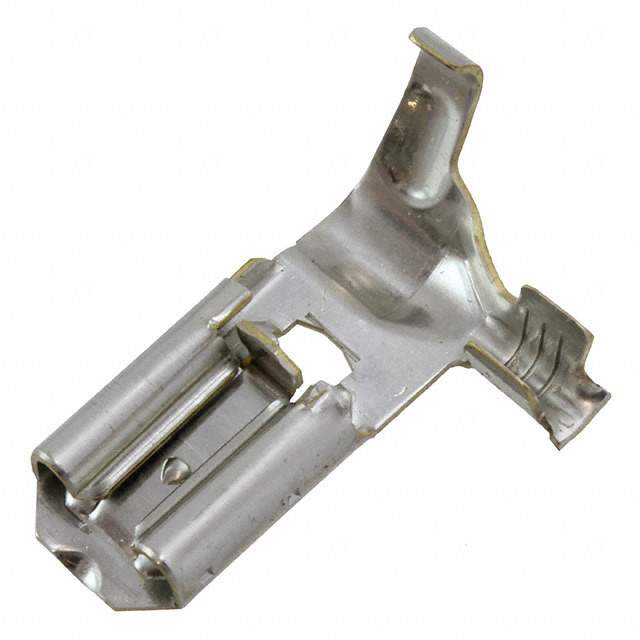

172763-1 Real Image
Same model may have multiple batches, images only for reference.

172763-1

Part No 172763-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.205" (2.79mm ~ 5.21mm)
Base Product Number 172763
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 172763-1-ND,-172763-1-CSI,-172763-1-SI,A105443CT,A105443TR,2266-172763-1TR,1727631
Standard Package 2,000
Win Source Part Number 1333436-172763-1
Ultra Librarian 3D Model Ultra Librarian 172763-1 CAD Model

Description

The TE Connectivity AMP Connectors 172763-1 is a female quick disconnect terminal that is designed to provide optimal performance in a wide range of electronic devices.

  • Type: Female Quick Disconnect
  • Mounting Type: Free Hanging (In-Line), Right Angle
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Tab Width: 0.250" (6.35mm)
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
