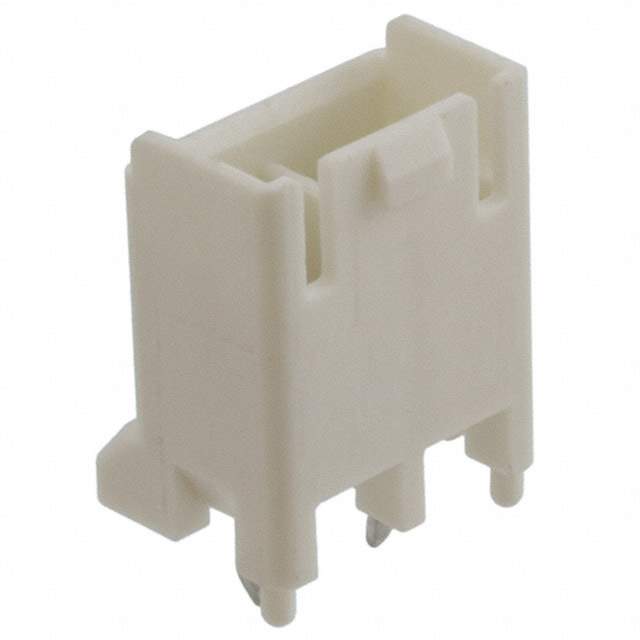

Products specifications

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Power Key
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.555" (14.10mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 300VAC
Mated Stacking Heights 19.4mm
Applications General Purpose
Base Product Number 1376382
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 1376382-1-ND,A106516,13763821,-1376382-1-CSI
Standard Package 200
Win Source Part Number 1213008-1376382-1
Ultra Librarian 3D Model Ultra Librarian 1376382-1 CAD Model

Description

TE Connectivity 1376382-1 is a barrel power connector component intended for designs that need dependable board- or cable-level power interconnection in compact electronic systems. Parts in this category are commonly evaluated for external power input paths, embedded equipment, consumer devices, industrial electronics, and serviceable assemblies where straightforward mating and replacement are important. Engineers often consider TE Connectivity products for broad ecosystem support, recognized manufacturing quality, and suitability for production as well as maintenance sourcing. For 1376382-1 specifically, exact electrical, mechanical, lifecycle, and environmental details should be confirmed in the latest manufacturer documentation before design release. The current lifecycle status is information not available, so teams should review supply continuity carefully if this part is being designed into a new program. RoHS compliance information is also not available from the provided input. Procurement and compliance teams should obtain the latest datasheet, declaration, or manufacturer confirmation before qualification, especially for regulated or long-life applications.
