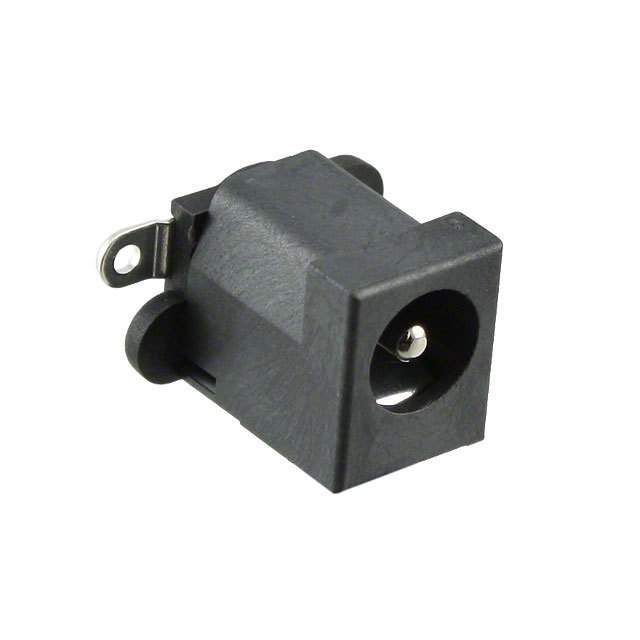

PJ-006A-SMT-TR CUI Inc.
Same model may have multiple batches, images only for reference.

PJ-006A-SMT-TR

Part No PJ-006A-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SOLDER
Datasheet
PJ-006A-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer CUI Inc.
Packaging Reel - TR
Status Active
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.078" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting SMD (SMT)
Termination Solder Eyelet(s)
Voltage Rating 18VDC
Current Rating 4A
Mating Length/Depth 0.352" (8.95mm)
Contact Material - Plating Silver
Temperature Range - Operating -20°C to 85°C
Housing Material Liquid Crystal Polymer (LCP)
Body Color Black
Material Flammability Rating UL94 V-0
Win Source Part Number 1089300-PJ-006A-SMT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PJ-006A-SMT-TR CAD Model

Description

The CUI Inc. PJ-006A-SMT-TR is a male jack connector with a voltage rating of 18VDC and a current rating of 4A.

  • Switch Configuration: single switch, normally closed
  • Housing Material: liquid crystal polymer
  • Flammability Rating: UL94 V-0
  • Supply and Demand Status: balanced
  • Packaging: reel - TR
