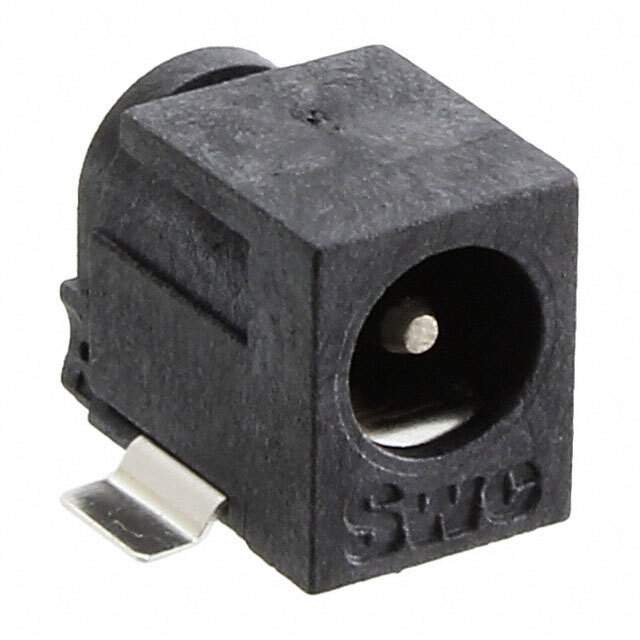

RASM722PTR13X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 7 Weeks
Features Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Surface Mount, Right Angle
Manufacturer Switchcraft Inc.
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name RASM72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number RASM722PTR13X-NDL, RASM722PTRP13X, Q6045785, SC2028-2, SC2028-1, RASM722PTR13X-ND, Q6689342, SC2028-6
Quantity per package 120
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891164-RASM722PTR13X
Ultra Librarian 3D Model Ultra Librarian RASM722PTR13X CAD Model

Description

The Switchcraft Inc. RASM722PTR13X is a high-popularity power barrel connector jack.

  • Mounting: suitable for surface mount and right angle mounting
  • Family: RASM72
  • Package: reel package with 120 pieces per package
  • Estimated Production Lead Time: 7 weeks
  • REACH: REACH unaffected
