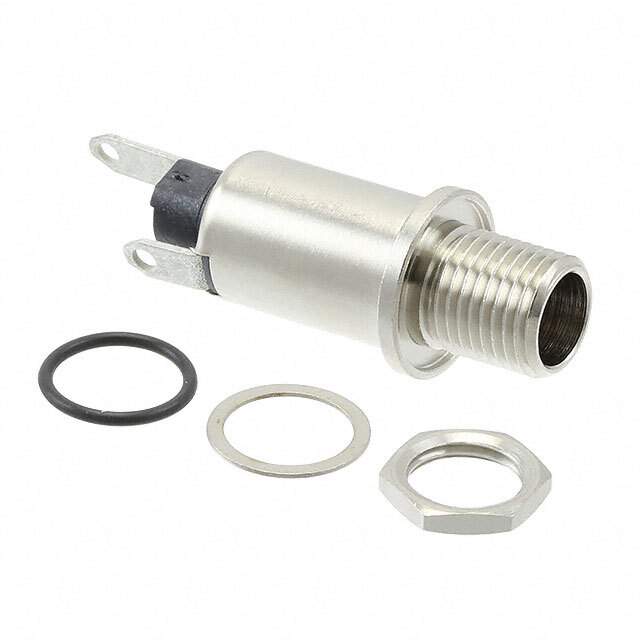

Same model may have multiple batches, images only for reference.

ST10U

Name: ST10U
Brand: Switchcraft Inc.
SKU: 1294273
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST10U
Manufacturer	Switchcraft Inc.
Catalog	Barrel - Power Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel - Power Connectors
Mfr	Switchcraft Inc.
Package	Bulk
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter	0.076" (1.93mm ID), 0.226" (5.75mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Panel Mount
Termination	Solder Eyelet(s)
Shielding	Unshielded
Features	Mounting Hardware
Voltage - Rated	24VAC/DC
Current Rating (Amps)	10 A
Ingress Protection	IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Contact Material - Plating	Tin
Body Material	Copper Alloy
Includes	4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Thread Size	5/16"-32
Body Color	Silver, Black
Other Names	SC2073
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1294273-ST10U
Ultra Librarian 3D Model	Ultra Librarian ST10U CAD Model

Description

The 1294273-ST10U is a male jack connector from Switchcraft Inc.

Type: Male Jack
Use: Power Connectors for Interconnects
Shielded: Unshielded
Conductors: 2
Contacts: 2
Voltage Rating: 24VAC/DC
IP Rating: IP66/IP67/IP68
Material: Copper Alloy
Housing Material: Thermoplastic
Contact Material Plating: Tin
Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
Mounting Type: Panel Mount
Thread Size: 5/16"-32
Pieces: 4 (1 connector, 1 nut, 1 O-ring, 1 washer)
Current Rating: 10A
