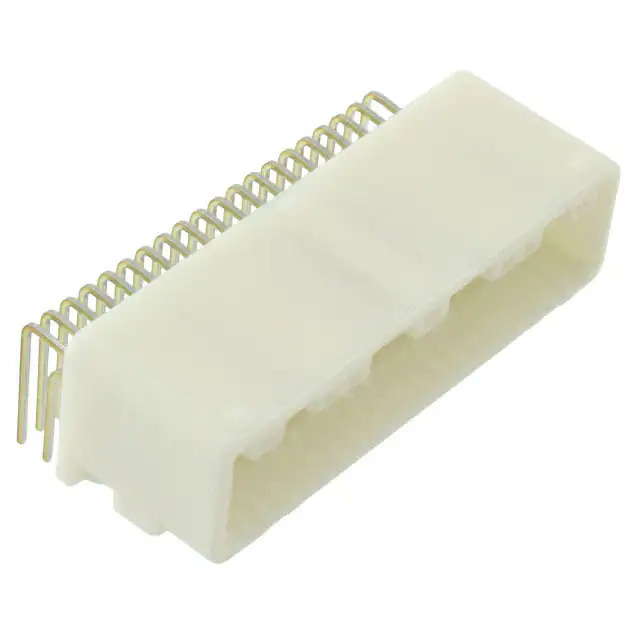

1318384-4 TE Connectivity
Same model may have multiple batches, images only for reference.

1318384-4

Part No 1318384-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.2MM / Connector Header Through Hole, Right Angle 40 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series -
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.217" (5.50mm)
Contact Length - Post 0.157" (4.00mm)
Overall Contact Length -
Insulation Height 0.610" (15.49mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange
Temperature Range - Operating -30°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 HB
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating 12VDC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 1318384
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1357253-1318384-4
Ultra Librarian 3D Model Ultra Librarian 1318384-4 CAD Model

Description

The TE Connectivity AMP Connectors 1318384 is a male pin header connector.

  • Category: Rectangular Connectors - Headers, Male Pins
  • Operating Temperature: -30°C to 105°C
  • Application: Automotive
  • Mounting Feature: Flange
  • Connection Style: Board to Cable/Wire
  • Pitch: 0.087" (2.20mm)
  • Number of Positions: 40
  • Number of Rows: 2
  • Mating Row Spacing: 0.118" (3.00mm)
  • Shrouding: Yes, 4 Walls
  • Termination Method: Solder
  • Fastening Type: Latch Holder
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Color: Natural
  • Voltage Rating: 12VDC
  • Flammability Rating: UL94 HB
