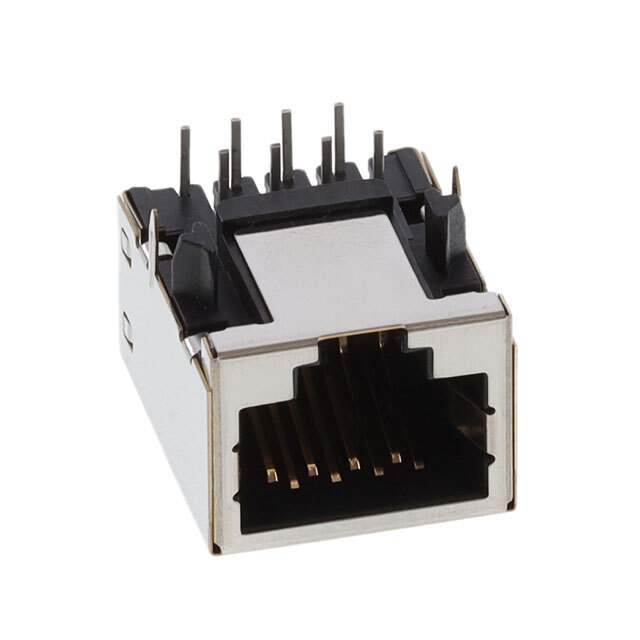

1116503-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Board Edge, Cutout; Through Hole
Orientation 90° Angle (Right)
Termination Solder
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Housing Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 038777-1116503-2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1116503-2 CAD Model

Description

Product Overview

The 1116503-2 is a high-quality connector ideal for implementing safe and efficient electronic connections, providing robust performance in various applications.

Applications and Projects

  • Telecommunication Networking
  • Automotive Electronics
  • Home Appliances
  • Industrial Machinery

Features and Benefits

  • Secure Connection: Designed to prevent accidental disconnection, enhancing system reliability.
  • Versatile Usage: Suitable for a wide range of applications, offering flexibility in design.
  • Heat and Corrosion Resistant: Ensures longevity and stability of connections.
  • Easy Maintenance: Modular design allows for straightforward troubleshooting and replacements.

The 1116503-2 offers a reliable and efficient solution for dynamic connectivity needs, making it indispensable for modern electronic systems.
