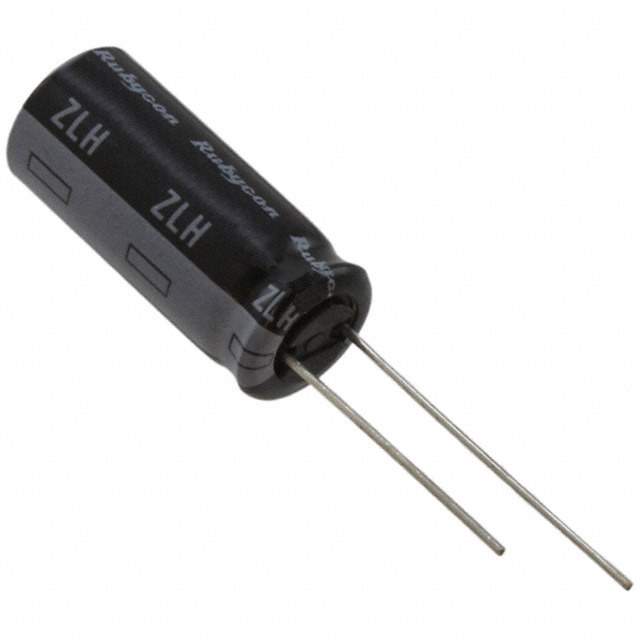

10ZLH2200MEFC10X23 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.575 A @ 120 Hz
Ripple Current @ High Frequency 2.25 A @ 100 kHz
Impedance 18 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-2172,10ZLH2200MEFC10X23-ND
Standard Package 1,000
Win Source Part Number 998393-10ZLH2200MEFC10X23
Ultra Librarian 3D Model Ultra Librarian 10ZLH2200MEFC10X23 CAD Model

Description

The Rubycon 998393-10ZLH2200MEFC10X23 capacitor is a high-quality component that is perfect for use in a wide range of electronic devices.

  • Capacitance: 2200μF
  • Voltage Rating: 10V
  • Mounting Type: Through-Hole
  • Impedance: 18 mOhm
  • ESR (Equivalent Series Resistance): -
  • Series: ZLH
  • Ripple Current: 1.575A @ 120Hz
  • Ripple Current: 2.25A @ 100kHz
