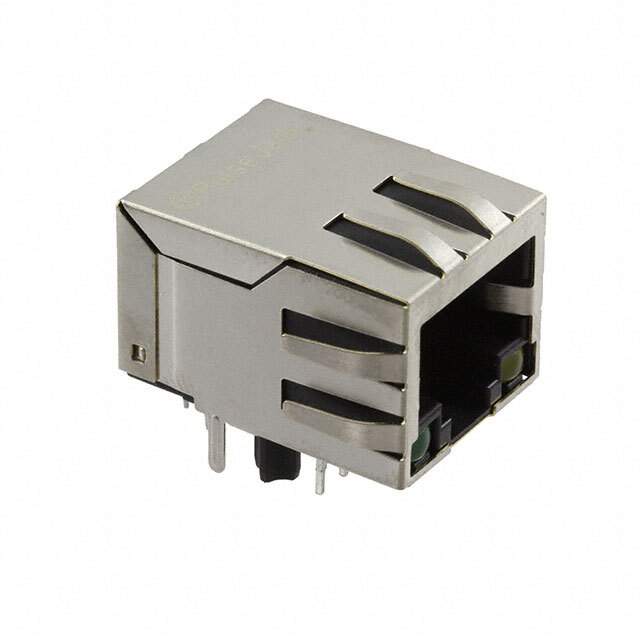

JXD0-0008NL Real Image
Same model may have multiple batches, images only for reference.

JXD0-0008NL

Part No JXD0-0008NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JXD0-0008NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-3734
Standard Package 50
Win Source Part Number 1333893-JXD0-0008NL
Ultra Librarian 3D Model Ultra Librarian JXD0-0008NL CAD Model

Description

The Pulse Electronics 1333893-JXD0-0008NL is a modular connector jack with magnetics that has a 90° angle (right) orientation.

  • Orientation: 90° angle (right)
  • Connector Type: RJ45
  • Shielding: EMI finger
  • Contact Material: Phosphor bronze
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Height Above the Board: 0.531" (13.49mm)
  • Feature: Board guide
  • Packaging: Tray
  • Standard Package: 50
  • Operating Temperature: -40°C to 85°C
  • RoHS compliant: Yes
  • Mounting: Through-hole
