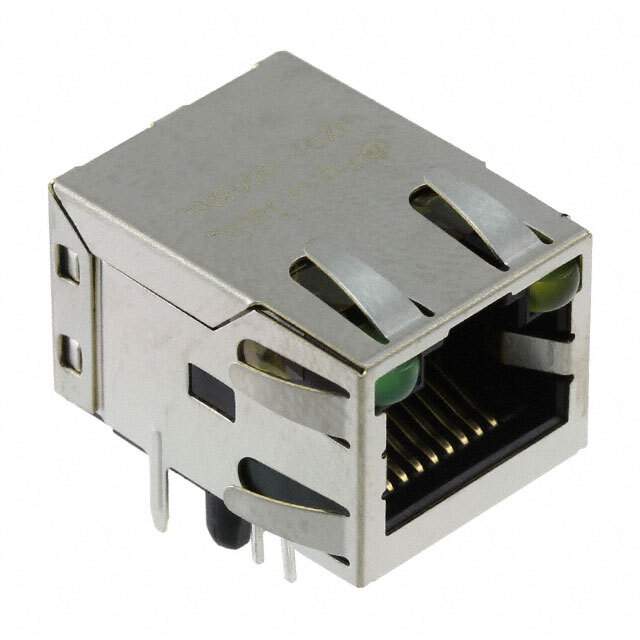

JXD1-0014NL Real Image
Same model may have multiple batches, images only for reference.

JXD1-0014NL

Part No JXD1-0014NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT PCB RJ45 1X1 / 1 Port RJ45Through Hole
Datasheet
JXD1-0014NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.528" (13.40mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness Flash
Shield Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-3740
Standard Package 50
Win Source Part Number 1333868-JXD1-0014NL
Ultra Librarian 3D Model Ultra Librarian JXD1-0014NL CAD Model

Description

Pulse Electronics' modular connector jack with magnetics is a high-quality component with a yellow-green LED color.

  • LED Color: Yellow-Green
  • Shielded: Yes, EMI Finger
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Number of Cores per Jack: 4
  • Tab Direction: Up
  • Height Above Board: 0.528" (13.40mm)
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
