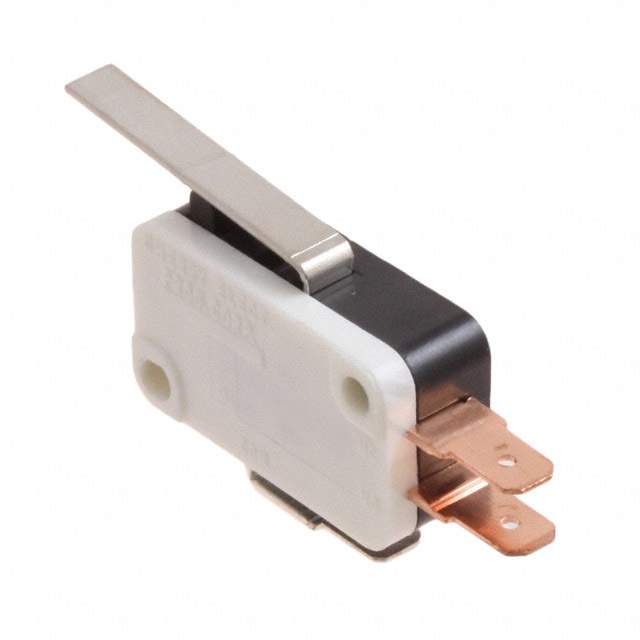

E34-50HX Real Image
Same model may have multiple batches, images only for reference.

E34-50HX

Part No E34-50HX
Manufacturer ZF Electronics
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr ZF Electronics
Series E
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection -
Features -
Operating Force 50gf
Release Force -
Operating Position 0.600" (15.2mm)
Pretravel 0.125" (3.2mm)
Differential Travel 0.030" (0.76mm)
Overtravel 0.085" (2.16mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 6,000 Cycles
Mechanical Life -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9040
Standard Package 960 pcs
Win Source Part Number 1381786-E34-50HX
Ultra Librarian 3D Model Ultra Librarian E34-50HX CAD Model

Description

The E34-50HX is a limit switch from the E series by ZF Electronics.

  • Series: E
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Termination Style: Quick Connect
  • Termination Size: 0.187" (4.7mm)
  • Voltage Rating: 125 V AC
  • Operating Force: 50gf
  • Pretravel: 0.125" (3.2mm)
  • Differential Travel: 0.030" (0.76mm)
  • Overtravel: 0.085" (2.16mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 85°C
  • Product Status: Obsolete
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
