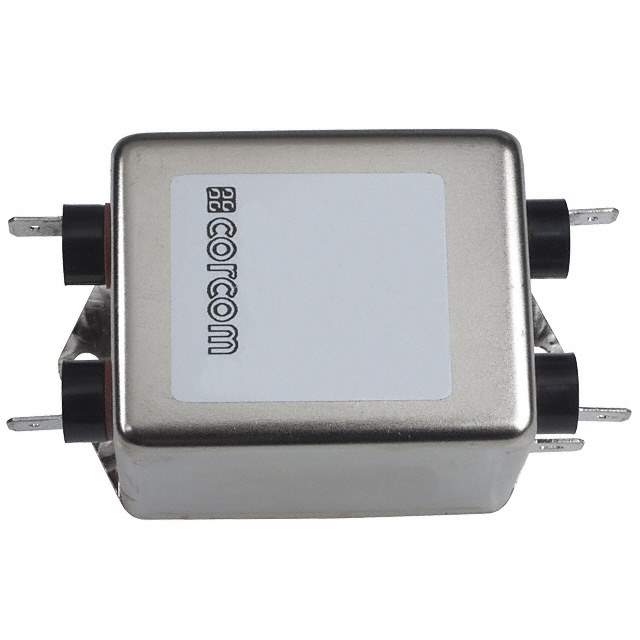

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TE Connectivity Corcom Filters
Series V
Package Bulk
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 250V
Current 10 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 1.2mH
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names -10VV1-SI,CCM1638-NDR,1609043-3,6609043-3,CCM1638
Standard Package 12
Win Source Part Number 1037899-10VV1
Ultra Librarian 3D Model Ultra Librarian 10VV1 CAD Model

Description

The TE Connectivity Corcom Filters 10VV1 is a power line filter module that is designed to provide reliable and efficient filtering of electrical noise and interference.

  • Configuration: Two-Stage
  • Filter Type: Single-Phase
  • Inductance: 1.2mH
  • Current Rating: 10A
  • Voltage Rating: 250V AC
  • Frequency: 50/60Hz
  • Mounting Type: Chassis Mount
  • Temperature Range: -10°C to 40°C
  • Application: Power Supplies, Audio Equipment, and other electronic devices
