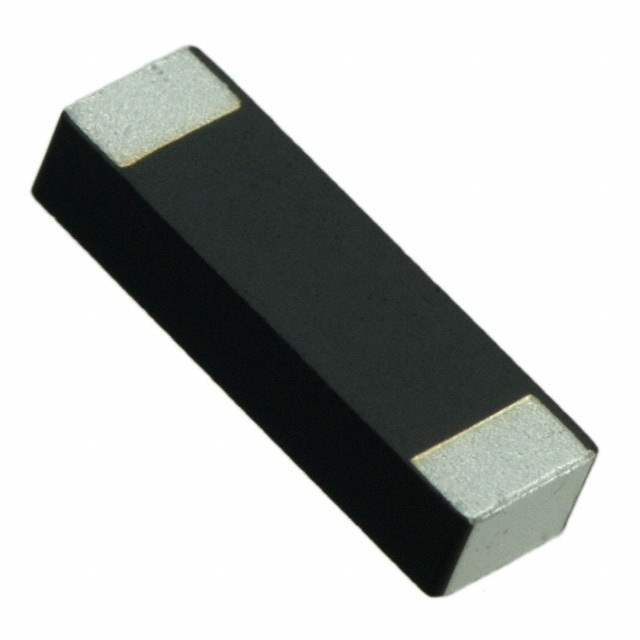

W3070 Pulse Electronics
Same model may have multiple batches, images only for reference.

W3070

Part No W3070
Manufacturer Pulse
Catalog RFID Antennas
Description RF ANT 900MHZ/1.8GHZ CHIP SLD
Datasheet
W3070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202326-W3070
Manufacturer Pulse Electronics
Category RF and Wireless -RF Antennas
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
RF Family/Standard Cellular
Frequency Group UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 900MHz, 1.8GHz
Frequency Range 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz
Antenna Type Chip
Return Loss -3.8dB, -4dB
Ultra Librarian 3D Model Ultra Librarian W3070 CAD Model

Description

The Pulse Electronics 1202326 is a chip antenna designed for RF and wireless applications.

  • Frequency: 880MHz to 960MHz and 1.71GHz to 1.88GHz
  • Frequency Group: UHF
  • Application: Cellular
  • Frequency Range: 900MHz and 1.8GHz
  • Packaging: Tape & Reel (TR) Cut Tape (CT)
  • Return Loss: -3.8dB and -4dB
  • Product Status: Active
  • Antenna Type: Chip
  • Manufacturer: Pulse Electronics
