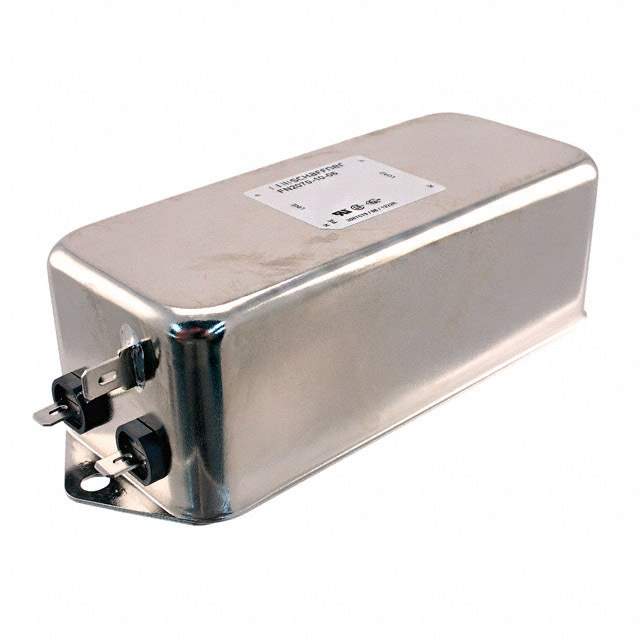

FN2070-10-06 Real Image
Same model may have multiple batches, images only for reference.

FN2070-10-06

Part No FN2070-10-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 110/250VAC 10A CHASS / Single Phase EMC/EMI Line Filter 10 A 110V, 250VAC DC ~ 400Hz Two Stage Quick Connect
Datasheet
FN2070-10-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2070
Package Tray
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 110V, 250V
Current 10 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 4.5mH
Base Product Number FN2070
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 800578,817-1307,FN2070 -10 -06,291-606,FN20701006
Standard Package 20
Win Source Part Number 1232203-FN2070-10-06
Ultra Librarian 3D Model Ultra Librarian FN2070-10-06 CAD Model

Description

The Schaffner EMC Inc. FN 2070-10-06 is a two-stage single-phase power line filter module with a current rating of 10 A and a voltage rating of 110V and 250V AC.

  • Current Rating: 10 A
  • Voltage Rating: 110V and 250V AC
  • Applications: General-Purpose
  • Frequency Range: DC to 400Hz
  • Inductance: 4.5mH
  • Termination Style: Quick Connect
  • Mounting: Chassis
  • Operating Temperature: -25°C to 100°C
  • Package: Tray
  • Standard Package: 20
  • Approvals: CSA, ENEC, and UR
  • ECCN: EAR99
