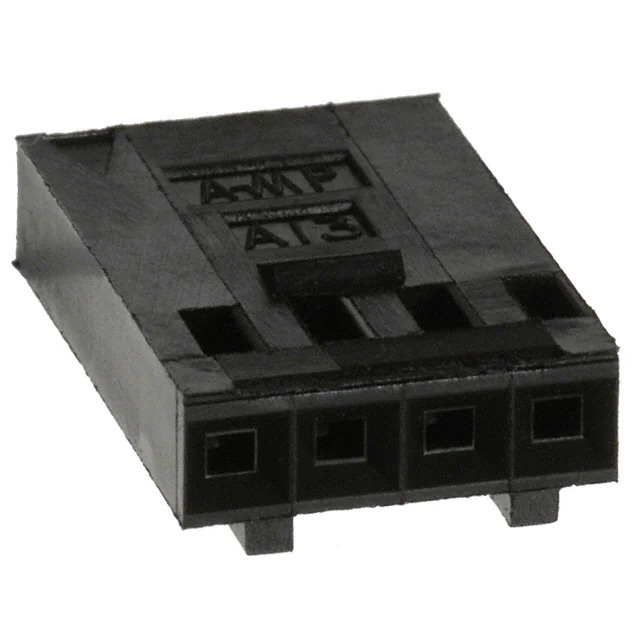

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 4
Pitch 0.100" (2.54mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Black
Features -
Temperature Range - Operating -65°C ~ 105°C
Note Contacts Not Included
Base Product Number 102241
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365463-102241-2
Ultra Librarian 3D Model Ultra Librarian 102241-2 CAD Model

Description

The 1365463-102241-2 is a rectangular connector housing in the AMPMODU Mod IV series from TE Connectivity AMP Connectors.

  • Series: AMPMODU Mod IV
  • Application: Connectors and Interconnects
  • Operating Temperature: -65°C to 105°C
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.100" (2.54mm)
  • Features: Locking Ramp
  • Connector Type: Receptacle
  • Number of Positions: 4
  • Number of Rows: 1
  • Termination: Crimp
  • Contact Gender: Female Socket
  • Color: Black
  • Packaging: Bulk
  • Note: Contacts not included
