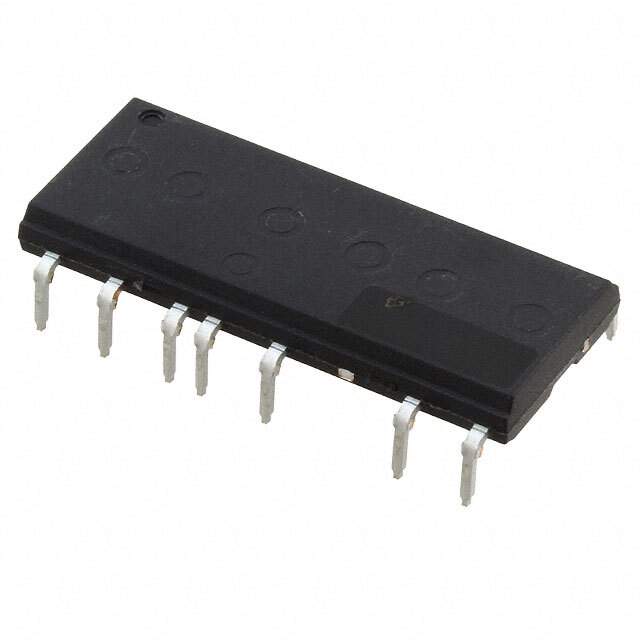

The ON Semiconductor FSB50550B is a cutting-edge Smart Power Module (SPM) designed to offer a compact and efficient solution for driving three-phase brushless DC motors. This innovative module integrates a range of features to ensure high performance in a variety of applications, including home appliances, air conditioners, fans, and industrial drives.

Key Features

• Advanced IGBT Technology: Utilizes the latest Insulated Gate Bipolar Transistor (IGBT) technology for efficient high-speed switching, resulting in improved performance and reduced energy losses.
• Integrated Bootstrap Diodes: Features built-in bootstrap diodes for the high-side gate-drive circuitry, simplifying the PCB layout and reducing external component count.
• Overcurrent Protection: Comes with an overcurrent protection circuit that safeguards the module and the overall system against unforeseen current spikes.
• Under-Voltage Lockout: The under-voltage lockout (UVLO) feature ensures the module operates within safe voltage levels, preventing damage from voltage drops.
• Optimized for Thermal Performance: Designed with an excellent thermal resistance path, ensuring reliable operation even under high power and temperature conditions.

Specifications

• Rated Voltage: 600V
• Current Rating: 1A
• Package: Mini-DIP
• Isolation Voltage: 1500Vrms

Applications

The FSB50550B from ON Semiconductor is ideal for a wide range of applications, offering a versatile solution for motor control systems. Its compact size and integrated features make it particularly suitable for space-constrained environments where efficiency and reliability are paramount.

Conclusion

ON Semiconductor's FSB50550B Smart Power Module stands out as a high-performance, integrated solution for advanced motor control applications. Its robust design, combined with state-of-the-art IGBT technology and protective features, ensures optimal performance and longevity, making it a preferred choice for engineers and designers looking to enhance their motor control systems.
