Same model may have multiple batches, images only for reference.

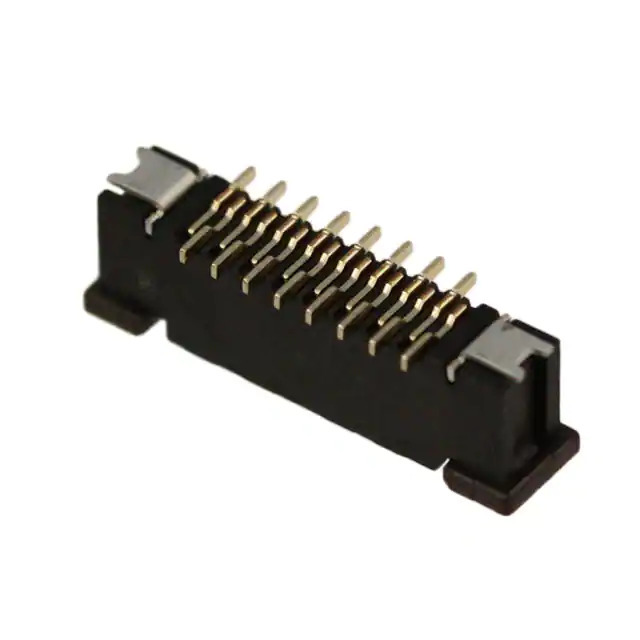

1-1734742-6 TE Connectivity
Same model may have multiple batches, images only for reference.

1-1734742-6

Part No 1-1734742-6
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 16POS 0.5MM SMD / 16 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Black
Actuator Color Brown
Mating Cycles -
Base Product Number 1734742
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362707-1-1734742-6
Ultra Librarian 3D Model Ultra Librarian 1-1734742-6 CAD Model

Description

The TE Connectivity AMP Connectors FFC, FPC Connector Assembly is a reliable and flexible connector used in various electronic applications.

  • Temperature Range: -20°C to 85°C
  • Current Rating: 0.5A
  • Voltage Rating: 50V
  • Feature: Solder retention and zero insertion force (ZIF)
  • Positions: 16
  • Mounting Type: Surface mount
  • Contact Material: Phosphor bronze with gold finish
  • Housing Material: Thermoplastic and glass-filled
  • Application: Flat flexible cable (FFC) and flat flexible printed circuit (FPC)
