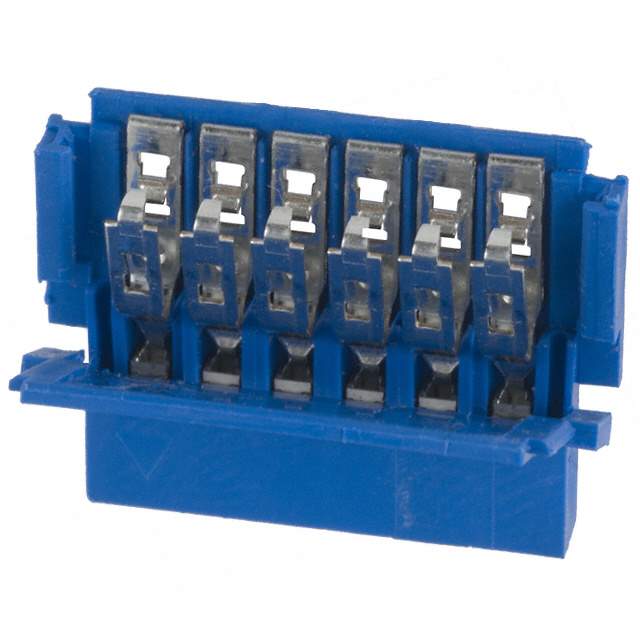

Same model may have multiple batches, images only for reference.

65801-006LF

Name: 65801-006LF
Brand: Amphenol
SKU: 1191200
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	65801-006LF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC RCPT 6POS 2.54MM / 6 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	Clincher™
Package	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Free Hanging (In-Line)
Connector/Contact Type	Receptacle
Number of Positions	6
Pitch	0.100" (2.54mm)
Termination	Solder
FFC, FCB Thickness	0.30mm, 0.33mm
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Material	Copper Nickel Alloy
Contact Finish	Tin
Housing Material	Thermoplastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	500V
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	2A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Blue
Actuator Color	Black
Mating Cycles	100
Base Product Number	65801
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	65801006LF,609-2162
Standard Package	80
Win Source Part Number	1191200-65801-006LF
Ultra Librarian 3D Model	Ultra Librarian 65801-006LF CAD Model

Description

The 65801-006LF is a connector from Amphenol ICC (FCI) that belongs to the FFC, FPC (Flat Flexible) Connectors category.

Category: FFC, FPC (Flat Flexible) Connectors
Number of Positions: 6
Pitch: 0.100" (2.54mm)
Features: Solder Retention, Zero Insertion Force (ZIF)
Termination: Solder
Contact Finish: Tin
Contact Finish Thickness: 100.0µin (2.54µm)
Package: Tray
Contact Material: Copper Nickel Alloy
Voltage Rating: 500V
Temperature Range: -65°C to 105°C
Cable End Type: Straight and Tapered
Housing Material: Thermoplastic
Actuator Color: Black
Housing Color: Blue
Current Rating: 2A
REACH Affected: Yes
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4051
