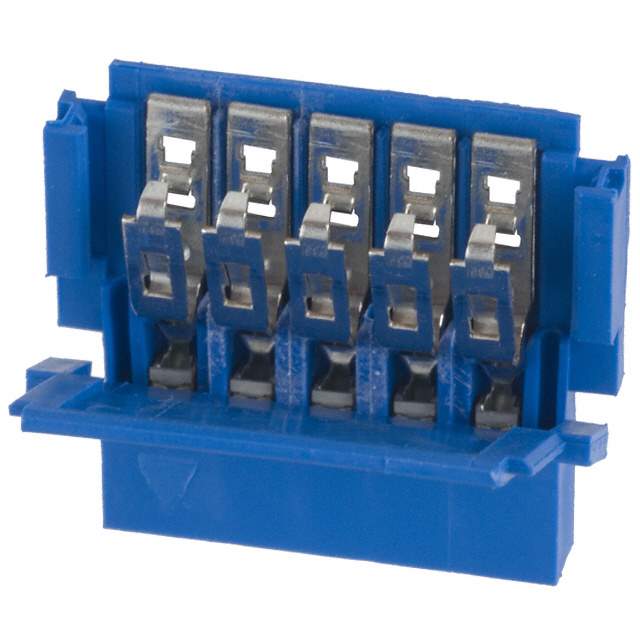

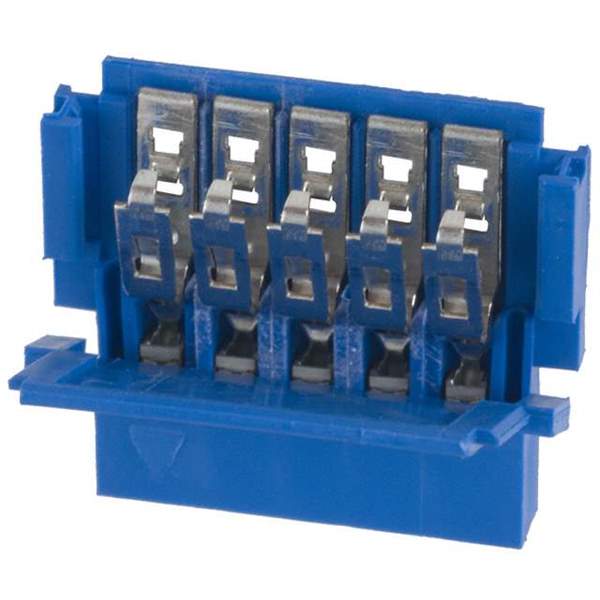

65801-005LF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series Clincher™
Package Tray
Flat Flex Type FFC, FPC
Mounting Type Free Hanging (In-Line)
Connector/Contact Type Receptacle
Number of Positions 5
Pitch 0.100" (2.54mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Locking Feature Slide Lock
Cable End Type Notched
Contact Material Copper Nickel Alloy
Contact Finish Tin
Housing Material Thermoplastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 500V
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Blue
Actuator Color Gray
Mating Cycles 100
Base Product Number 65801
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-2161,65801005LF
Standard Package 72
Win Source Part Number 1192304-65801-005LF
Ultra Librarian 3D Model Ultra Librarian 65801-005LF CAD Model

Description

The Amphenol 1192304-65801-005LF is a Clincher series connector that is used in FFC and FPC applications.

  • Series: Clincher
  • Application: FFC/FPC
  • Type: ZIF (Zero Insertion Force)
  • Positions: 5
  • Pitch: 0.100 inches
  • Feature: Solder Retention
  • Material: Copper Nickel Alloy
  • Voltage Rating: 500V
  • Current Rating: 2A
  • Operating Temperature: -65°C to 105°C
  • REACH: Unaffected
  • ECCN: Not Affected
