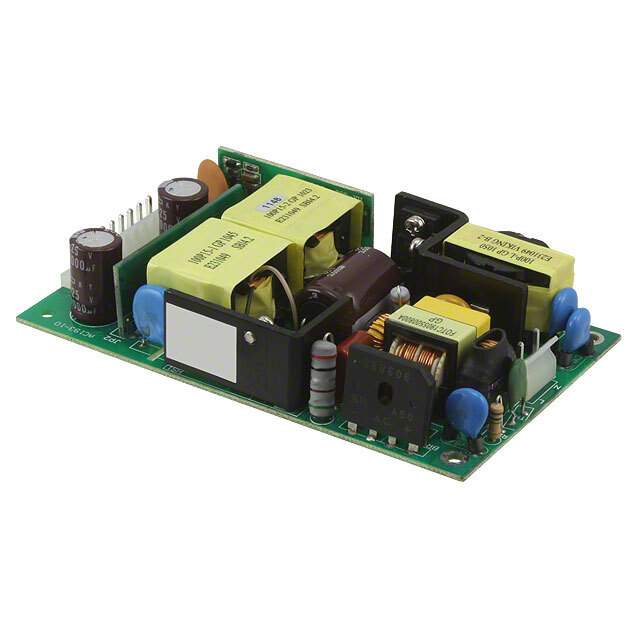

ZPSA100-48 Real Image
Same model may have multiple batches, images only for reference.

ZPSA100-48

Part No ZPSA100-48
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 48V 100W  /  Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series ZPSA100 (100W)
Package Bulk
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 48V
Current - Output 1 2.1 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 84%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features DC Input Capable, PFC, Universal Input
Mounting Type Chassis Mount
Dimension 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
Approval Agency CE
Minimum Load Required No
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.6018
Other Names 285-2102,ZPSA100-48,ZPSA10048,285-2102-ND,285-ZPSA100-48
Standard Package 1
Win Source Part Number 1090772-ZPSA100-48
Ultra Librarian 3D Model Ultra Librarian ZPSA100-48 CAD Model

Description

The ZPSA100-48 is an open frame AC-DC converter from TDK-Lambda Americas Inc.

  • Series: ZPSA100
  • Power Output: 100W
  • DC Input Capability: Yes
  • Power Factor Correction: Yes
  • Input: Universal Input
  • Voltage Input Range: 90 ~ 264 VAC, 120 ~ 370 VDC
  • Voltage Isolation: 3 kV
  • Output Voltage: 48V
  • Output Current: 2.1A
  • Efficiency: 84%
  • Operating Temperature: 0°C to 70°C (with derating)
  • Mounting: Chassis Mountable
  • Dimensions: 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
  • Application: ITE (Commercial)
