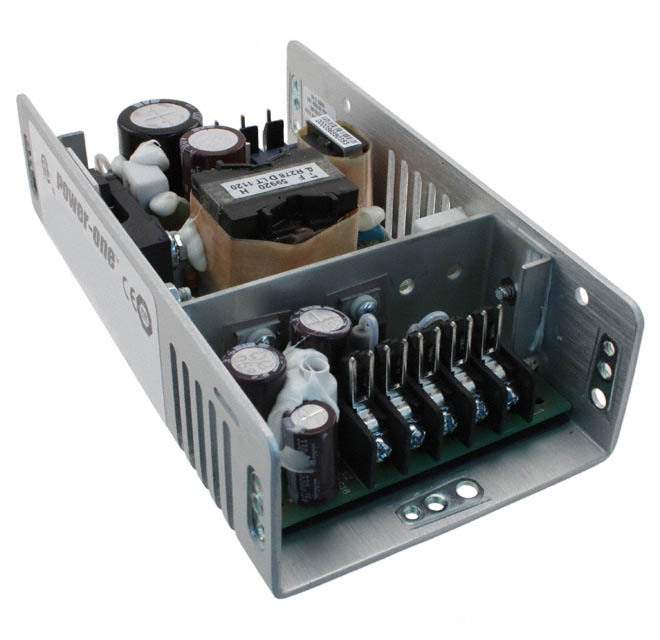

MAP55-4002G Real Image
Same model may have multiple batches, images only for reference.

MAP55-4002G

Part No MAP55-4002G
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description AC/DC CNVRTR 5V +/-12V 12V 55W  /  Open Frame AC DC Converters 4 Output 5V 12V -12V 12V 90 ~ 264 VAC Input
Datasheet
MAP55-4002G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series MAP55 (55W)
Package Bulk
Type Open Frame
Number of Outputs 4
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 5V
Voltage - Output 2 12V
Voltage - Output 3 -12V
Voltage - Output 4 12V
Current - Output 1 8 A
Current - Output 2 5 A
Current - Output 3 1 A
Current - Output 4 1 A
Power (Watts) 55W
Applications ITE (Commercial)
Voltage - Isolation 2.6 kV
Efficiency 73%
Temperature Range - Operating 0°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Dimension 6.00" L x 3.27" W x 1.60" H (152.4mm x 83.1mm x 40.6mm)
Approval Agency CE
Standard Number 60950-1
Minimum Load Required Yes
Base Product Number MAP55
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6007
Other Names 179-2356,(MAP55-4002G)
Standard Package 10
Win Source Part Number 1224786-MAP55-4002G
Ultra Librarian 3D Model Ultra Librarian MAP55-4002G CAD Model

Description

The MAP55 (55W) series open frame AC/DC converter is designed for use in ITE (commercial) applications. Bold the product name (e.g., BAV99S,135 → MAP55 (55W)).

  • Application: ITE (Commercial)
  • Output: Adjustable
  • Input: Universal
  • Power: 55W
  • Voltage Input: 90 ~ 264 VAC
  • Voltage Isolation: 2.6 kV
  • Outputs: Four
  • Voltage Ratings: 5V, 12V, -12V, and 12V
  • Minimum Load: Yes
  • Efficiency: 73%
  • Package/Case: Bulk
  • Mounting Type: Chassis Mount
  • Operating Temperature: 0°C to 70°C (with derating)
  • Standard Package: 10
