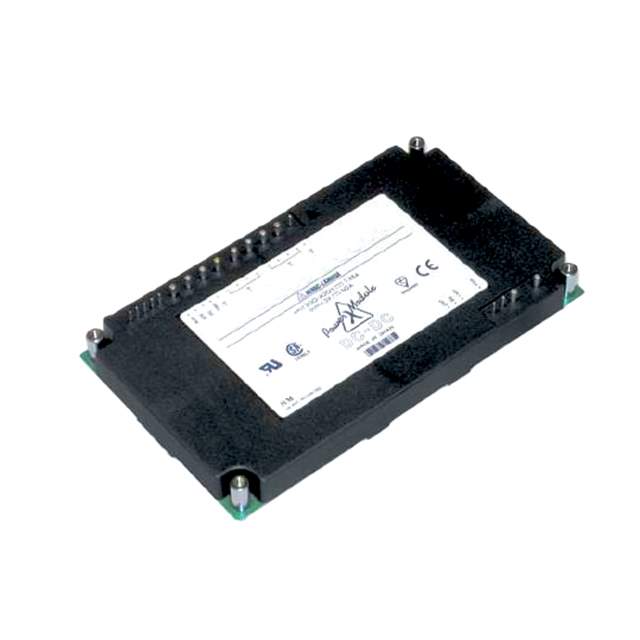

PH150S110-15 Real Image
Same model may have multiple batches, images only for reference.

PH150S110-15

Part No PH150S110-15
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 150W / Isolated Module DC DC Converter 1 Output 15V 10A 82V - 185V Input
Datasheet
PH150S110-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series PH-S (150W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 82V
Voltage - Input (Max) 185V
Voltage - Output 1 15V
Current - Output (Max) 10A
Power (Watts) 150 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Through Hole
Package / Case Module
Dimension 3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Control Features Enable, Active Low
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names PH150S11015
Standard Package 1
Win Source Part Number 1084680-PH150S110-15
Ultra Librarian 3D Model Ultra Librarian PH150S110-15 CAD Model

Description

The PH150S110-15 is a power supply module from TDK-Lambda Americas Inc. It is a 150W isolated module that has a voltage isolation of 3kV. The module has a current output of 10A and an input voltage range of 82V to 185V. The module features remote on/off, OCP, OTP, and OVP. The product is packaged in bulk and is mounted using through-hole technology. The product is categorized under Power Supplies - Board Mount>DC DC Converters and is now obsolete.
