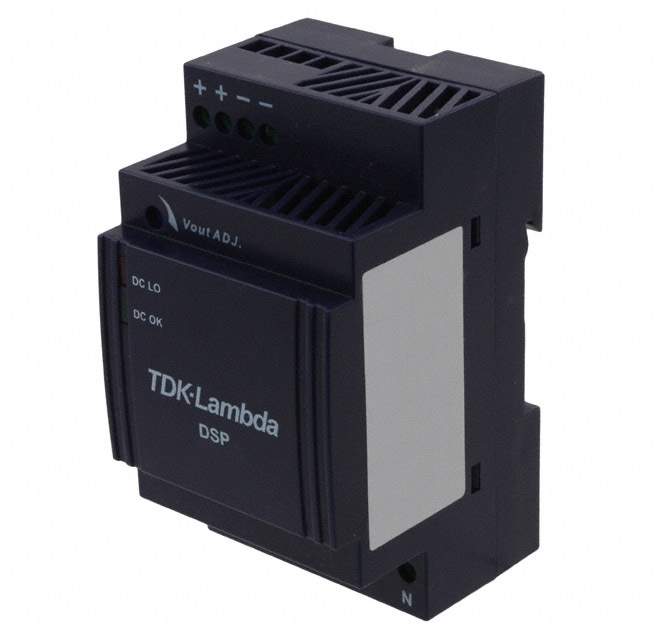

DSP30-24 Real Image
Same model may have multiple batches, images only for reference.

DSP30-24

Part No DSP30-24
Manufacturer TDK-Lambda Americas Inc.
Catalog OEM Parts (C - E)
Description AC/DC CONVERTER 24V 30W /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr TDK-Lambda Americas Inc
Series DSP (7.5-100W)
Package Bulk
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 90 ~ 264 VAC
DC Voltage - Input (Min) 120V
DC Voltage - Input (Max) 370V
Voltage - Output 1 24V
Current - Output (Max) 1.3A
Power (Watts) 30W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 83%
Temperature Range - Operating -25°C ~ 71°C (With Derating)
Features Adjustable Output, Universal Input
Dimension 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm)
Approval Agency CE
Base Product Number DSP30
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.6018
Other Names 285-1231,DSP3024
Standard Package 1
Win Source Part Number 975861-DSP30-24
Ultra Librarian 3D Model Ultra Librarian DSP30-24 CAD Model

Description

The DSP30-24 is a 30W industrial DIN rail power supply from the DSP (7.5-100W) series of TDK-Lambda Americas Inc.

  • Output Type: Adjustable
  • Input Type: Universal Input
  • Package: Bulk
  • Application: ITE (Commercial)
  • Voltage Isolation: 3 kV
  • Number of Outputs: Single
  • Maximum Output Current: 1.3A
  • Voltage Output: 24V
  • Efficiency: 83%
  • Minimum Load Required: No
  • Operating Temperature: -25°C to 71°C (with derating)
  • Dimension: 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm)
  • HTSUS Code: 8504.40.6018
  • Approval Agency: CE
